Internal Battery (deprecated)

SM-BTR2

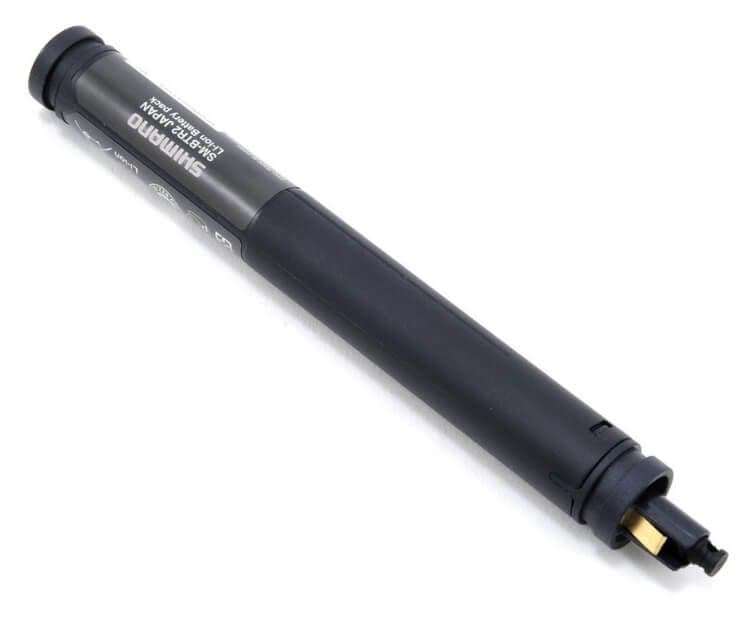

The Shimano SM-BTR2 is an older generation model internal battery that weighs about 50g, has a rated capacity of 500 mAh and a rated voltage of 7.4 V.

Its normal operating temperature range is between -10C and 50C. You charge the battery by connecting your charger to the Junction (A) box.

If storing the battery away for a long period, remove it when the battery level is 50% or higher (the indicator is illuminated green) in order to prolong its useful life. It is recommended that you charge the battery about once every half a year.

Store the battery or bicycles with the battery installed in cool indoor places (approx. 10 to 20 °C) where they do not become exposed to direct sunlight or rain. If the storage temperature is low or high, the performance of the battery is reduced, and its available time will be shorter. When you use the battery after a long storage period, be sure to fully charge it before use.

Affiliate Links

Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.

Synchro-shift and wireless compatibility

Note that this older battery is not synchro-shift compatible. You will need to use the newer BT-DN110 for that.

This battery will not work with the EW-WU111 / EW-WU101 Wireless Units or the SC-MT800 / SC-M9051 displays. It will work with the older SM-EWW01 wireless unit (ANT only) and SC-M9050 display.

If you are considering getting a display or wireless unit however, really consider upgrading to the BT-DN110 battery.
