Electric Wire / E-Tube cable

EW-SD300

The current generation Shimano EW-SD300 electric wire is used to connect the individual parts of the EP8 E-MTB and 12-speed Di2 series to each other. They're available in a lot of different sizes:

150mm, 250mm, 300mm, 350mm, 400mm, 500mm
550mm, 600mm, 650mm, 700mm, 950mm, 1000mm
1200mm, 1400mm, 1600mm

Affiliate Links

Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.

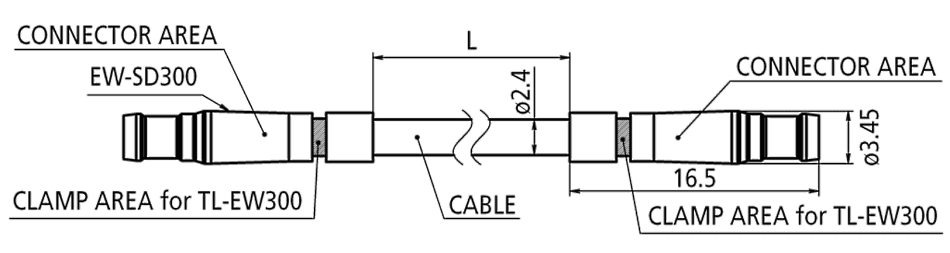

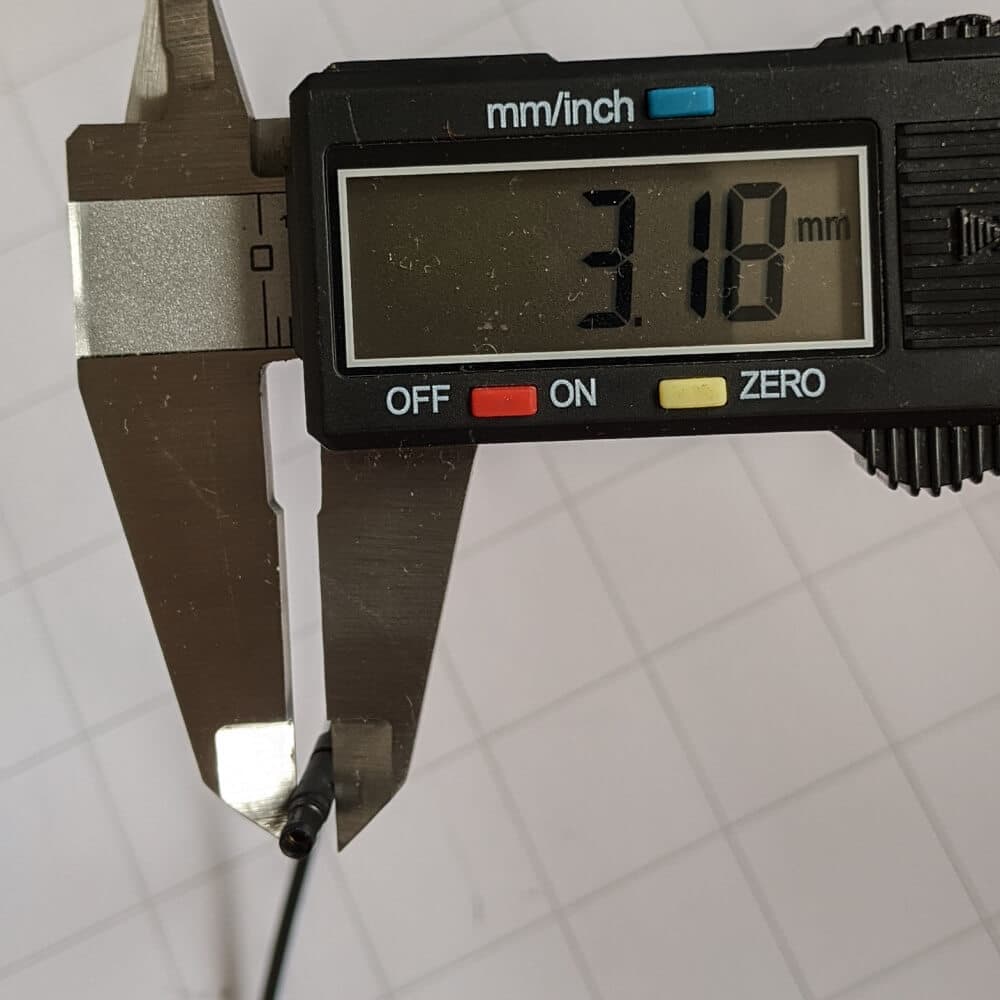

These wires are smaller than the older EW-SD50. The wire diameter is about 2.1mm and the plug itself is 3.2mm.

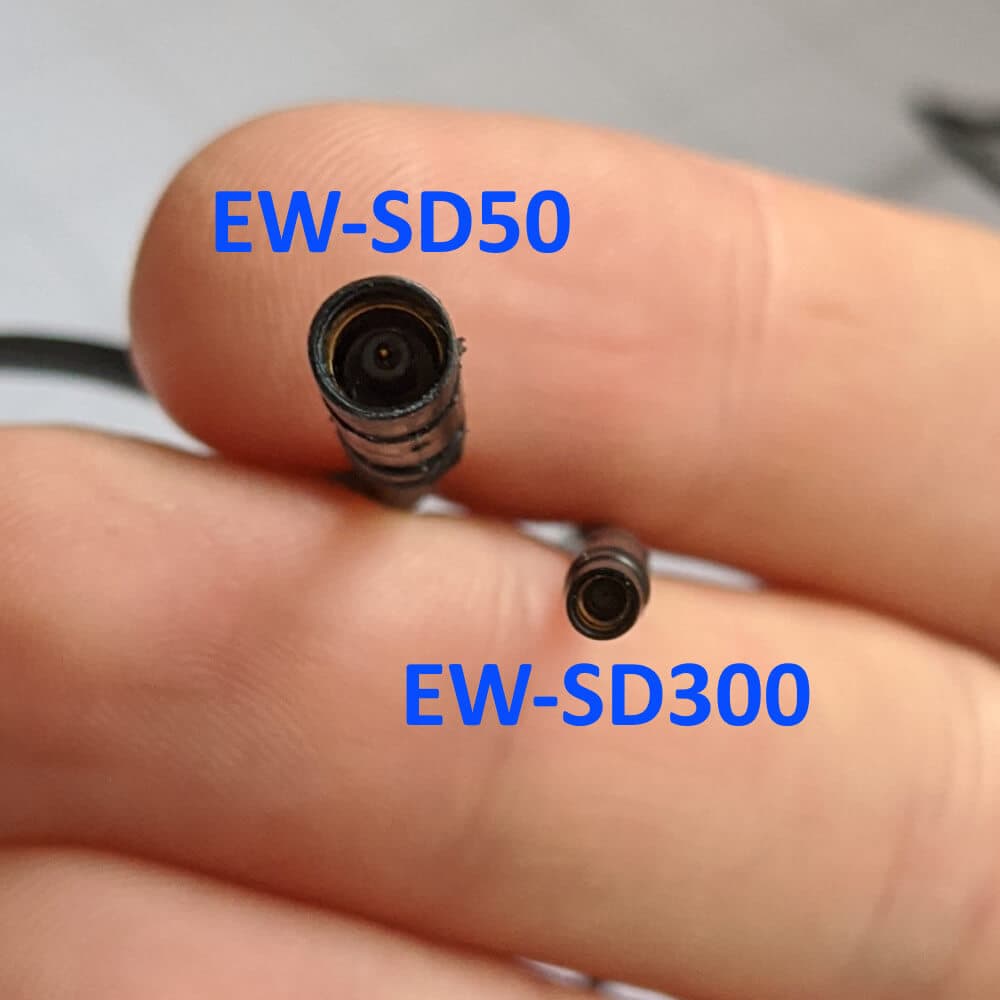

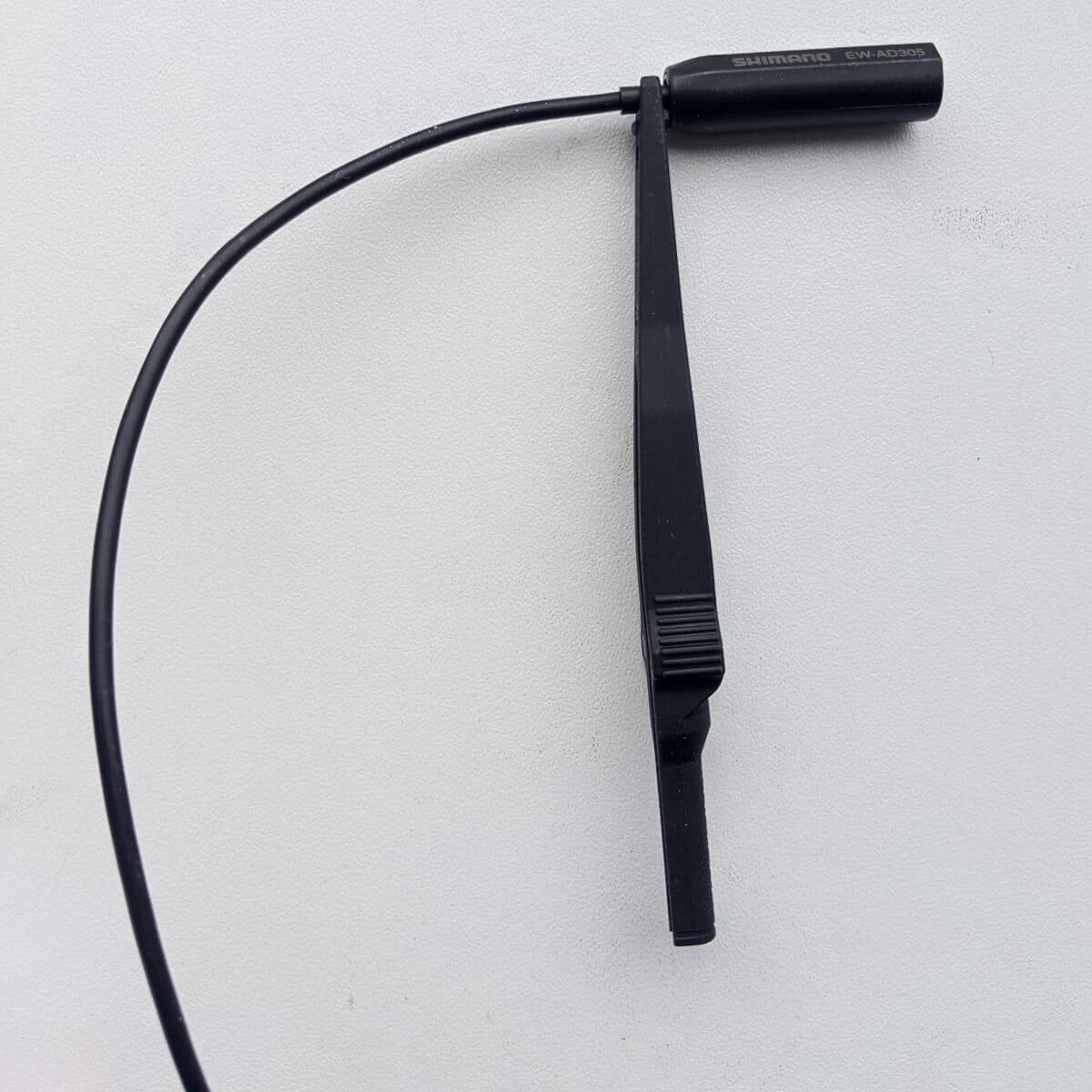

Despite the obvious differences in size between the EW-SD50 and the EW-SD300, they're both E-Tubes. You can wire up any Di2 series using EW-SD300 wires, but you'll need the EW-AD305 adapter.

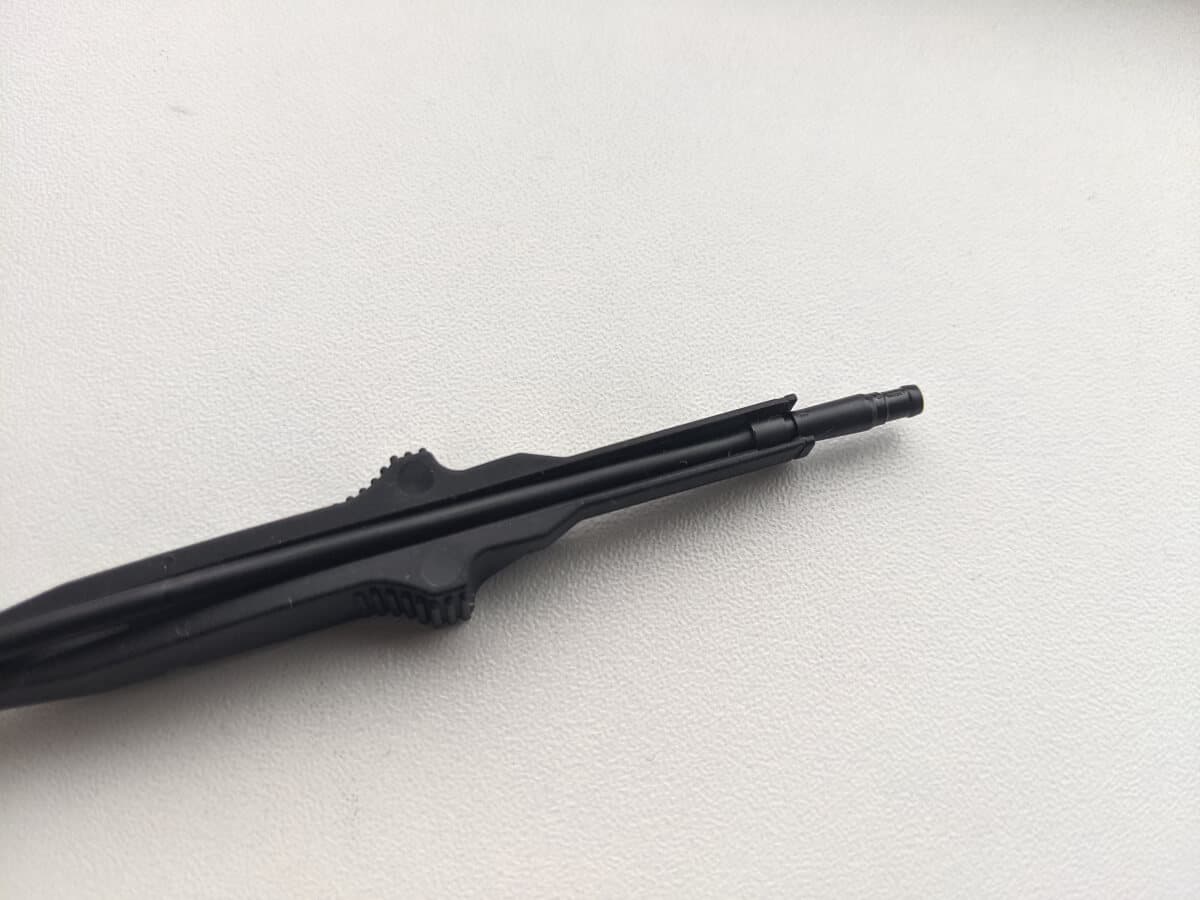

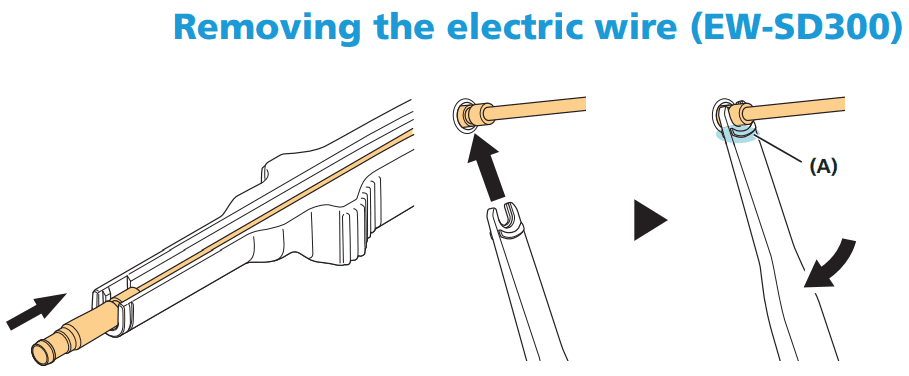

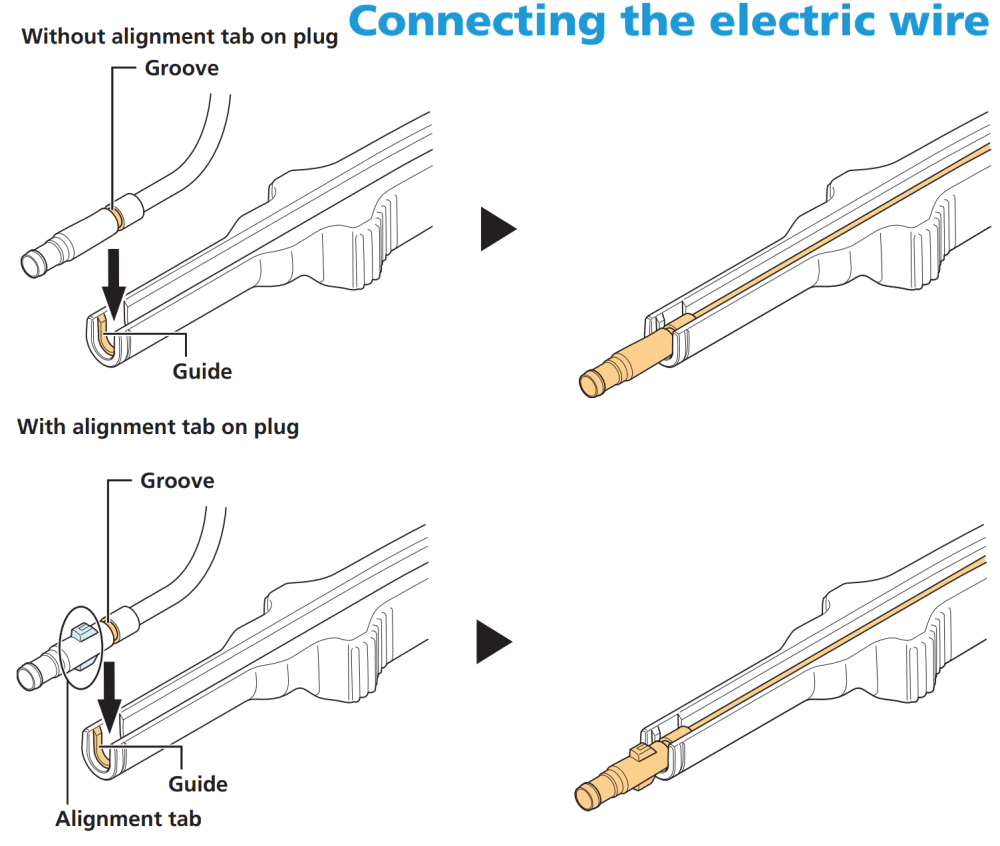

You cannot use the TL-EW02 tool to connect these wires, it is too big. The correct tool is the TL-EW300.

EW-SD300 vs EW-SD300-I

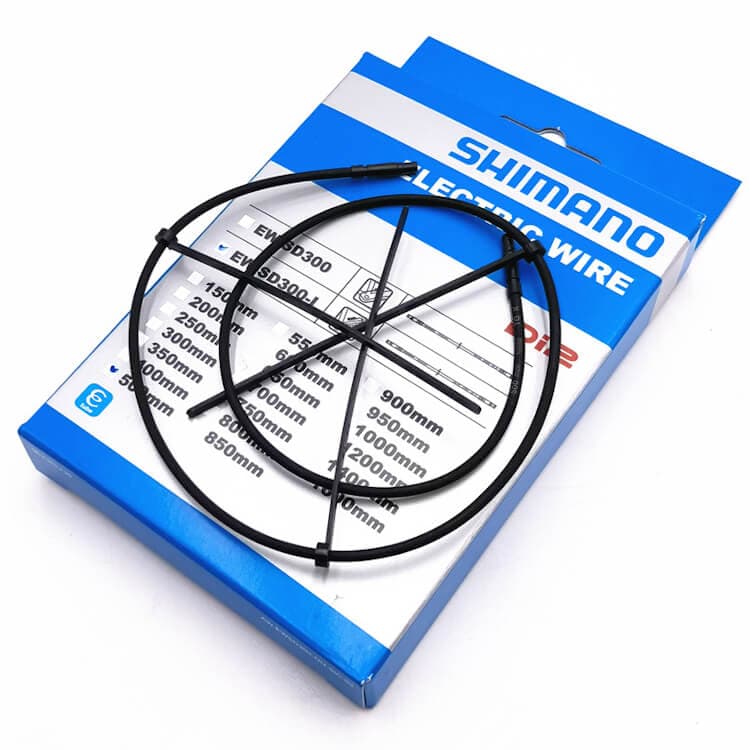

If you've looked for SD300 wires online, you might've noticed that there are two different versions out there - EW-SD300 and EW-SD300-I. What is the difference between these EW-SD300 and EW-SD300-I wires?

There is none, other than the wire holders or Di2 tie-wraps that come with the EW-SD300-I version. Internally, both versions are exactly the same, and both versions will work just fine.

Specifications

Model code: EW-SD300
Series: 12-Speed small parts

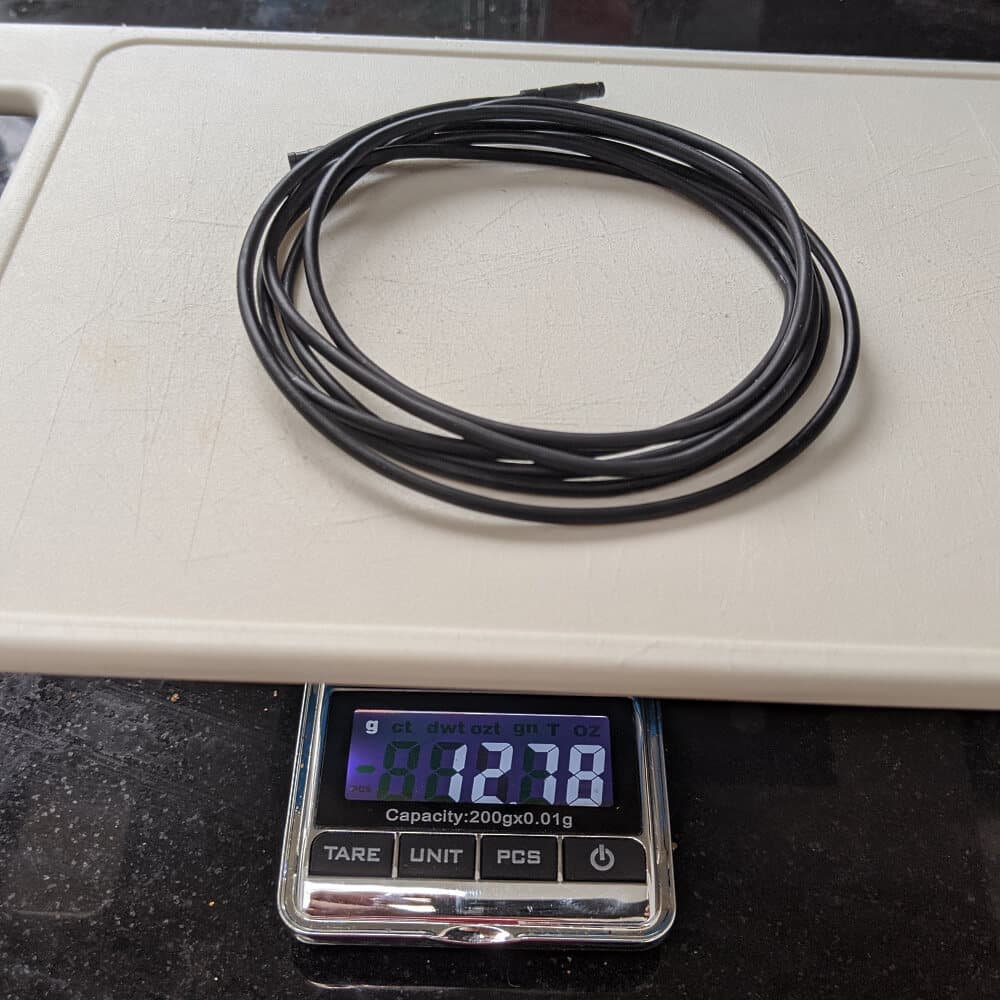

Weight: 12g
Wire length: 150mm / 250mm / 300mm / 350mm / 500mm / 550mm / 600mm / 650mm / 700mm / 950mm / 1000mm / 1200mm / 1400mm / 1600mm
Connector: SD300
