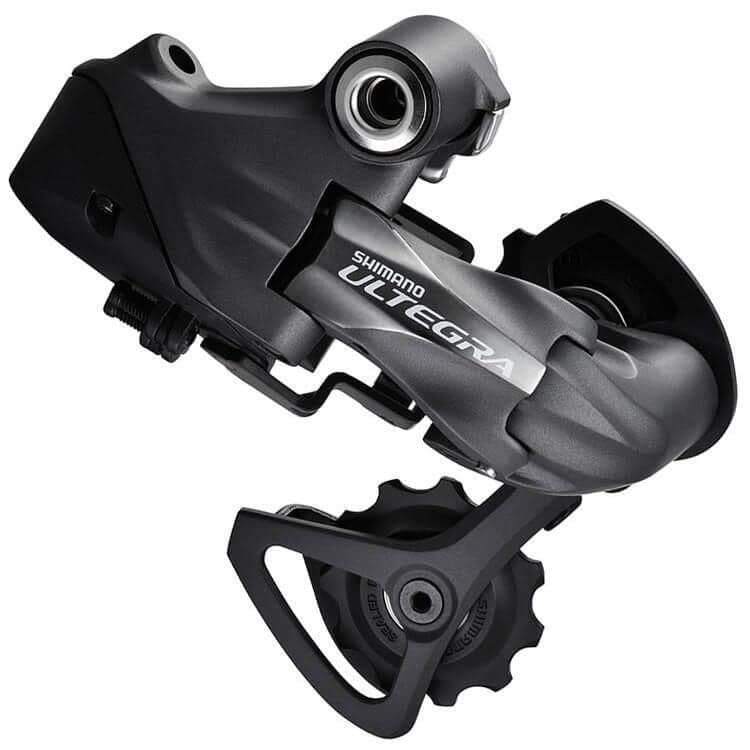

Short Cage Rear Deraileur (10 speed)
Ultegra RD-6770-SS
This RD-6770 rear derailleur is a 10-speed rear derailleur and as such it isn't really used anymore. All current and previous Di2 generations have moved on to 11-speed and 12-speed.
Its low sprocket max is 28T and the top sprocket min is 11T. The max supported front difference is 16T and its total capacity is 33T.
Affiliate Links
Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.
Has your RD-6770 broken? You cannot just replace that with an 11-speed model - all installed derailleurs must be the same speed.
Read more on upgrading your bike and compatibility on the pages linked below.
Specifications
- Model code
- RD-6770-SS
- Series
- Ultegra 6770
- Weight
- 270g
- SD50 ports
- 1
- RD Type
- Non-shadow RD
- Clutch
- No
- Max front difference
- 16T
- Low sprocket max
- 28T
- Total capacity
- 33T
- Low sprocket min
- 23T
- Top sprocket min
- 11T
- Top sprocket max
- 12T
- Pulley teeth
- 11
