Installation guide: Di2 wired shift levers
Learn how to install Di2 drop bar levers commonly used on Di2 road bikes or Di2 gravel bikes. This walks you through the process and lists useful tips.

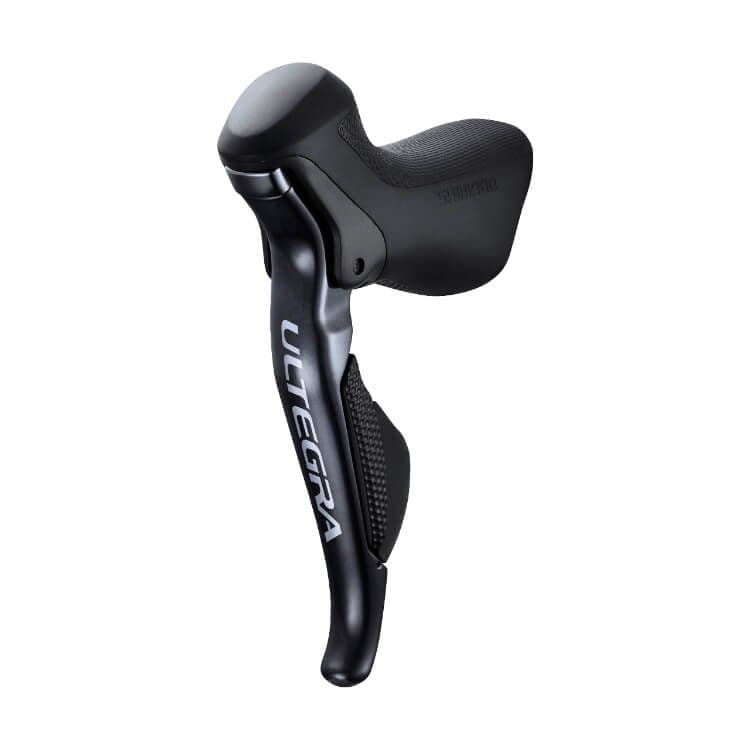

Dual Control Lever
Ultegra ST-6870
A set of ST-6870 Dual Control levers weighs about 300g for a pair and both of them are equipped with two e-Tube ports and a remote sprinter shifter port.
Affiliate Links
Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.
These previous generation Di2 levers are suitable for rim brakes and possibly mechanical disc brakes. The brake lever clamp band supports 23.8 - 24.2 mm diameter bars (standard road drops).
These 6870 levers do not have a button on top of the hoods.
Specifications
- Model code
- ST-6870
- Series
- Ultegra 6870
- Weight
- 166g (per lever)
- Number of buttons
- 2
- SD50 satellite shifter ports
- 1
- SD50 ports
- 2
- Wired shifting
- Yes
- Wireless shifting
- No
- Reach adjust
- Yes
- Brake type
- Rim
