12-speed Front Derailleur installation and adjustment guide
Twelve-speed Di2 Front Derailleurs do not have any limit bolts, so installing the derailleur and setting the limits is different from what you're used to.

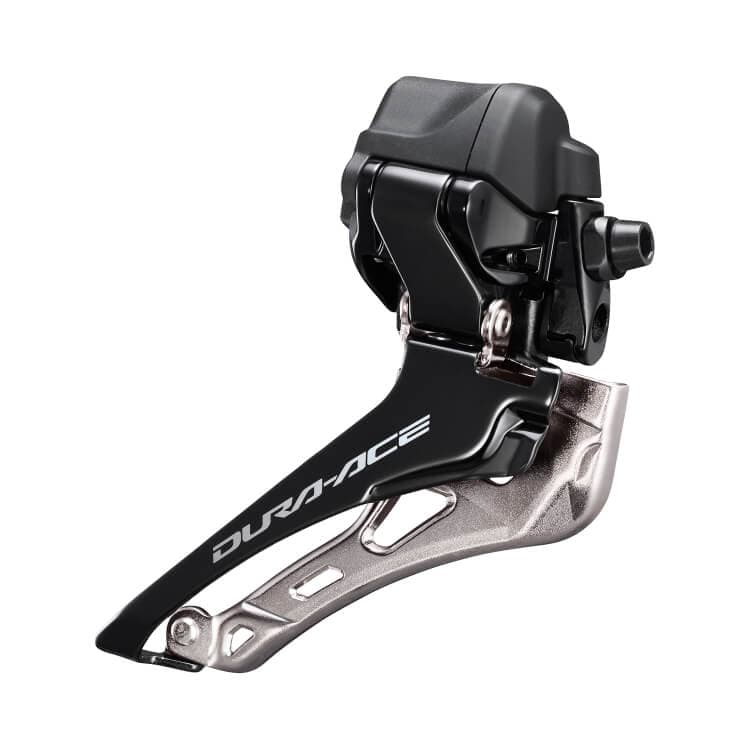

Front Derailleur
Dura-Ace FD-R9250
The FD-R9250 is Shimano's first 12 speed Di2 Front Derailleur, to be used with the semi-wireless R9250 groupset.
It works with the BT-DN300 battery and EW-SD300 Electric Wire.
Wireless, but wired

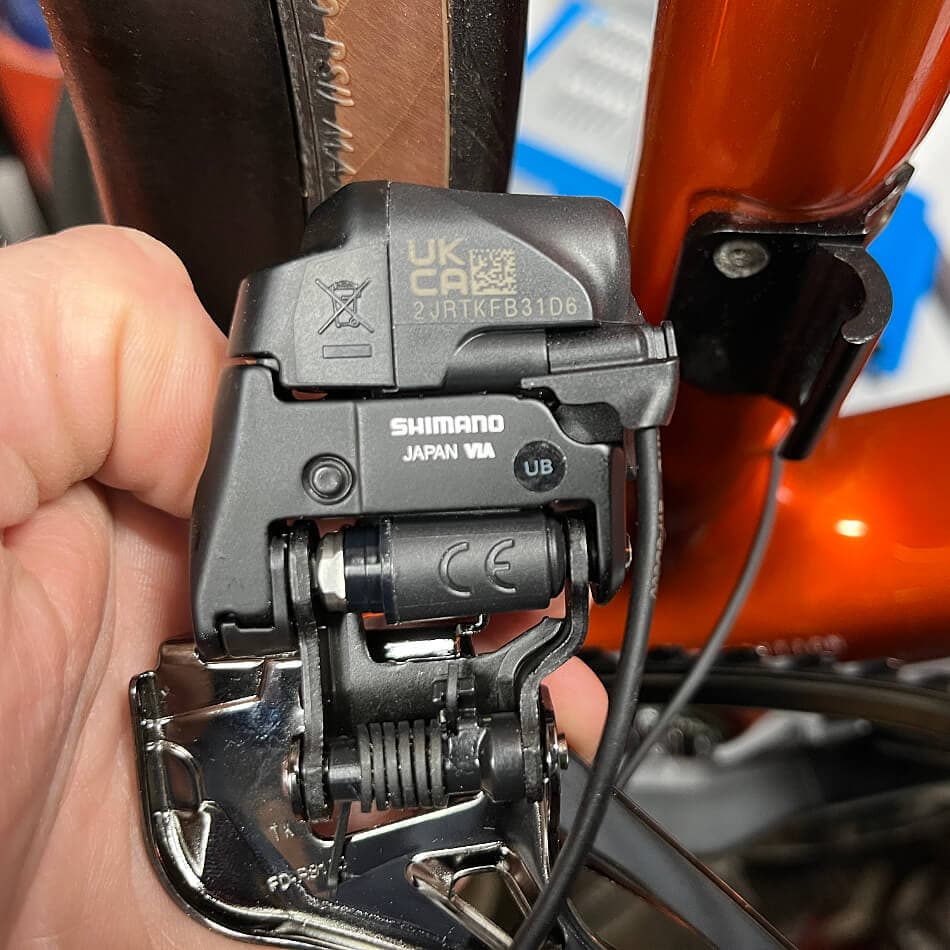

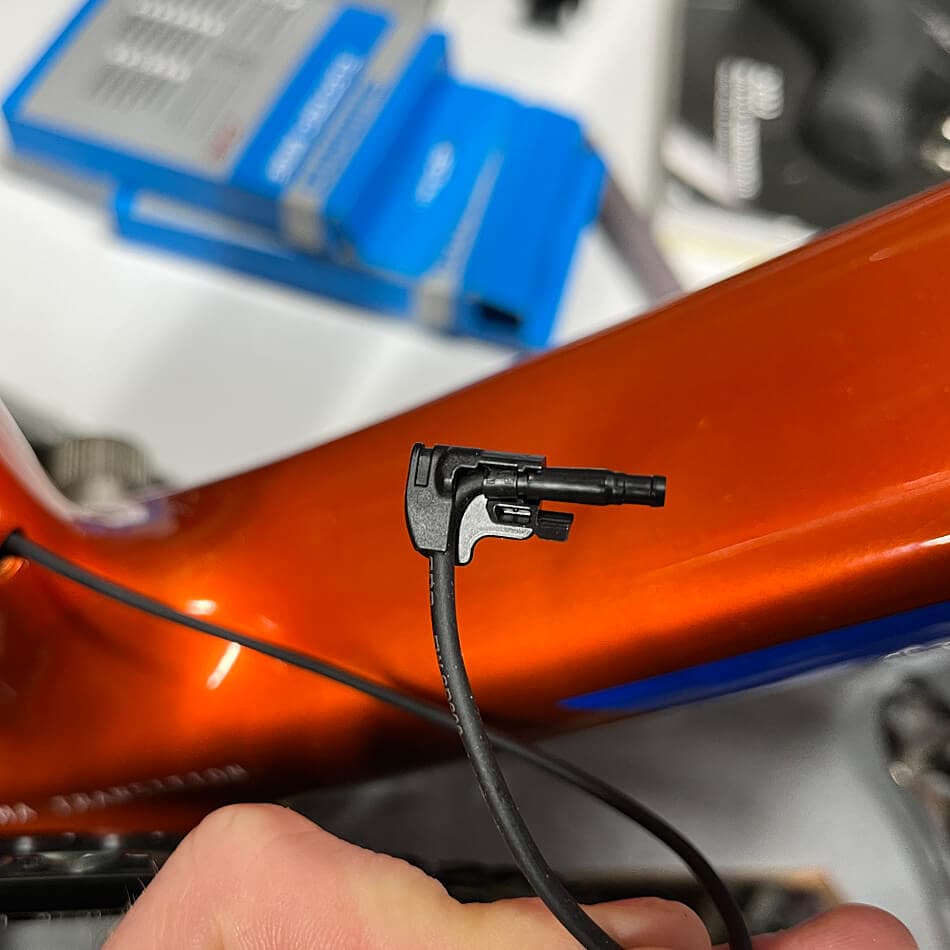

Twelve-speed Di2 components are wireless, so what is a wire doing here? The new Di2 system is only semi-wireless, meaning that the derailleurs are still plugged into the battery, but the shifters send their shift commands wirelessly.
Affiliate Links
Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.
Backward compatibility
This 12-speed front derailleur is meant to be used with a 12-speed road rear derailleur. It will not work with 11-speed derailleurs or MTB derailleurs.
Want to know more about 11-speed and 12-speed compatibility? Read my guide on 12-speed compatibility.
Specifications
- Model code
- FD-R9250
- Series
- Dura-Ace R9200
- Weight
- 96g
- SD300 ports
- 1
- Total capacity
- 16T
- Chain line
- 44.5mm
- Top gear teeth
- 46T - 54T

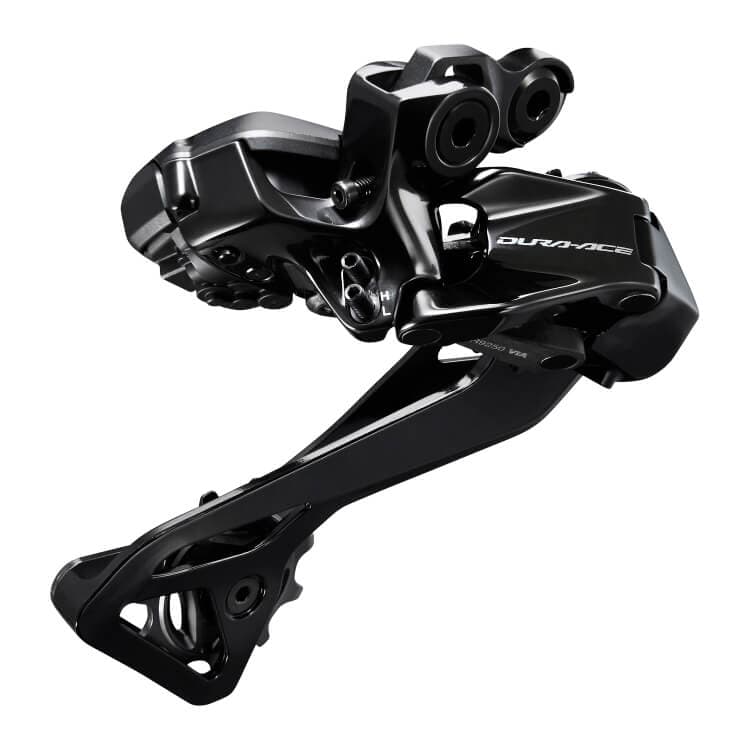

Related components
View all components
Understanding Di2 derailleur specifications
What is a rear derailleur's total capacity, really? Why is there a top sprocket minimum? And what about front derailleurs? Chain line, total capacity, Top gear teeth? This page explains all of those, and more.

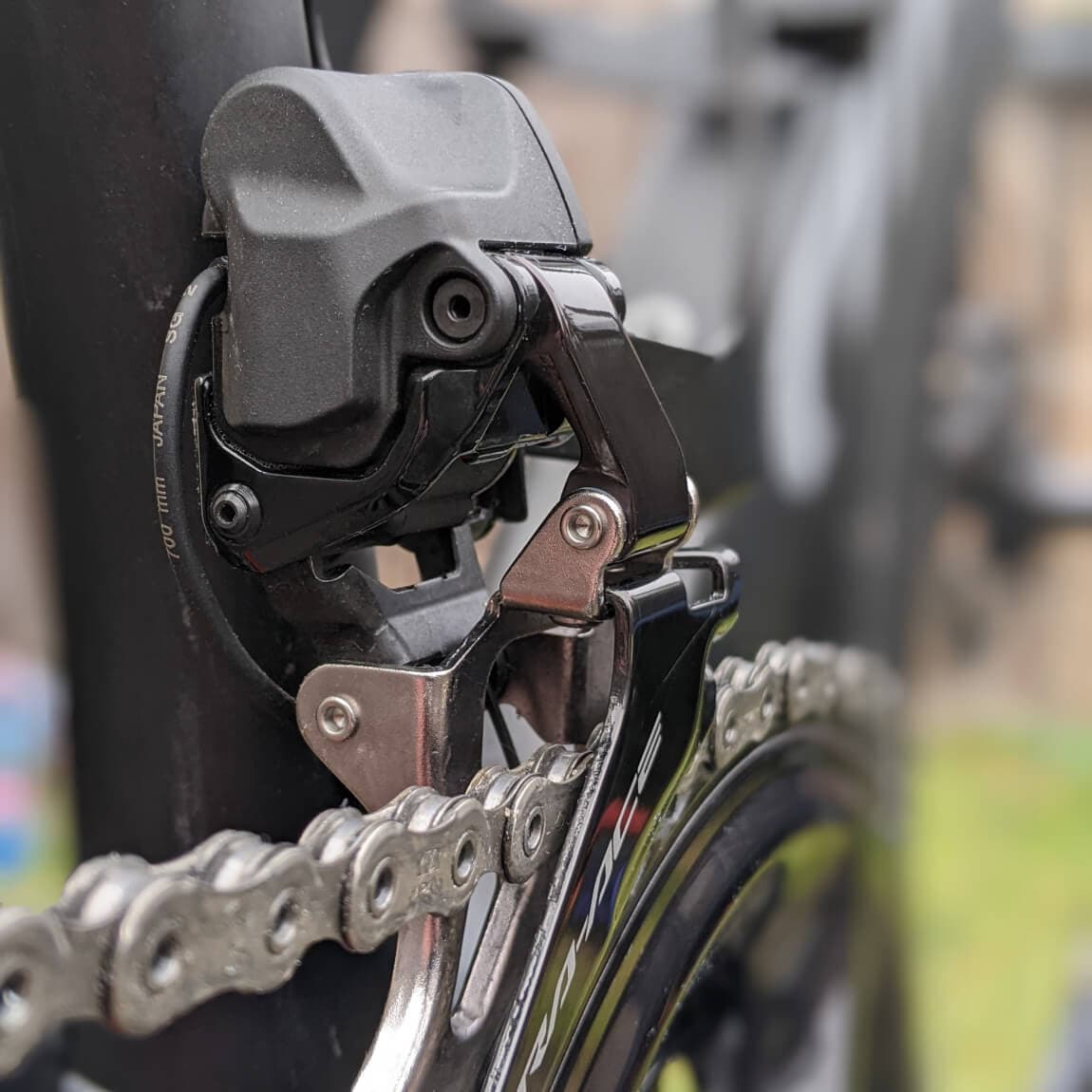

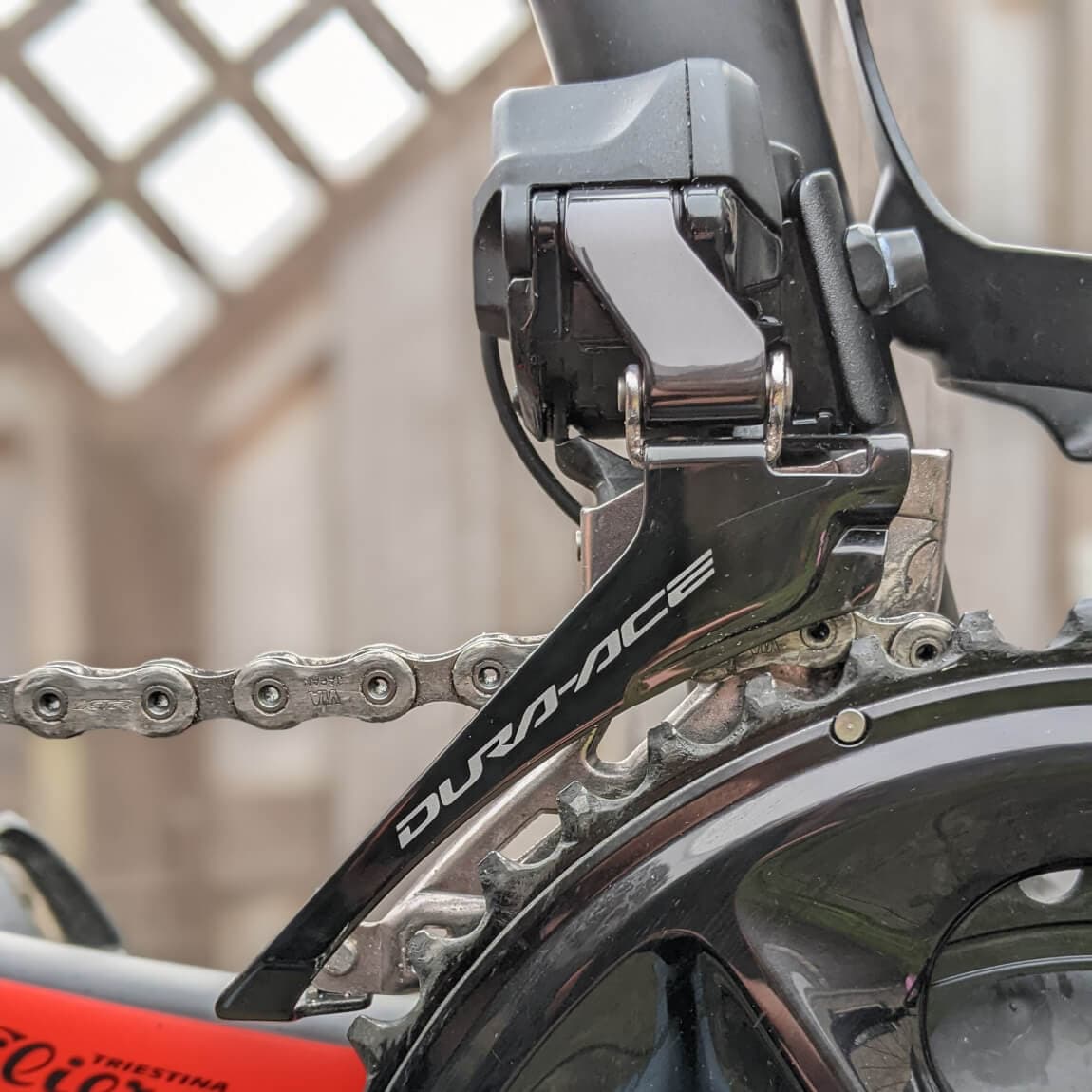

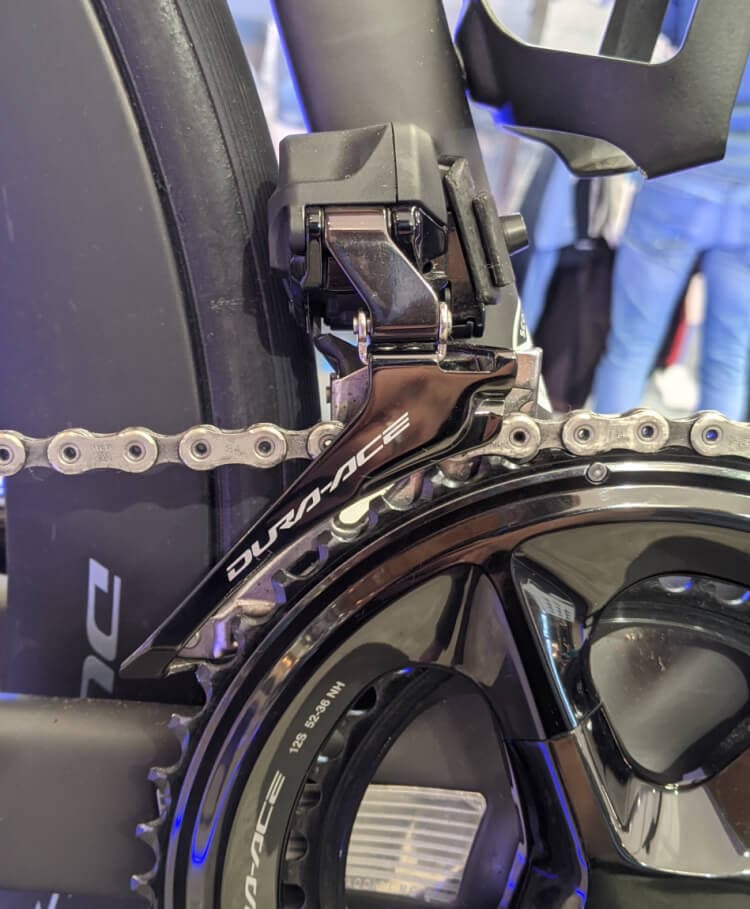

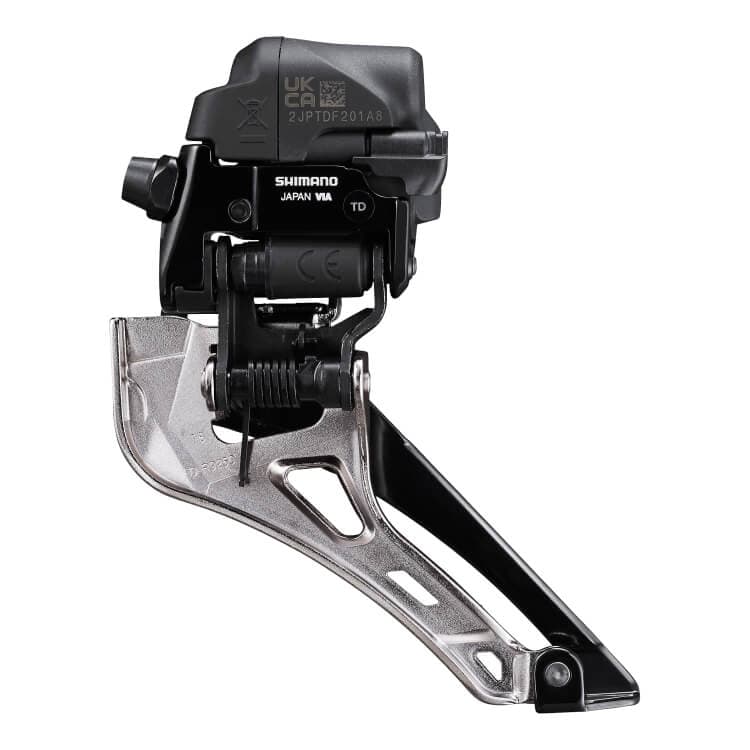

Images
More images
