External mount for Internal battery

SM-BTC1

If you cannot place the BT-DN110 Internal Battery in your bike's frame you have two options: either use the BM-DN100 external battery mount and the SM-BTR1 battery, or use the SM-BTC1 external mount for the internal battery. In most cases using the SM-BTC1 is the better option. It has several advantages:

You can use it with both SM-BTR2 (previous internal battery) and the newer BT-DN110 battery.

The 12-speed BT-DN300 battery is not compatible.

Affiliate Links

Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.

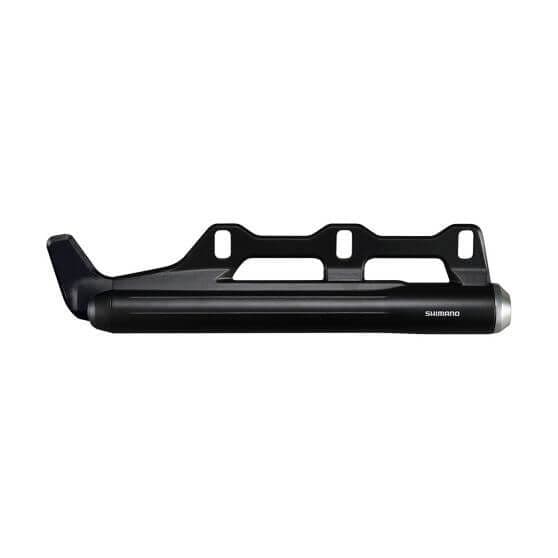

The SM-BTC1 has a low profile design and attaches to a frame's bottle cage mounts

You can use SM-BCR2 to charge the bike instead of SM-BCR1

The charger for internal batteries, SM-BCR2, lets you connect your bike to a windows computer to change settings and update firmware. The external battery charger, SM-BCR1, does not.

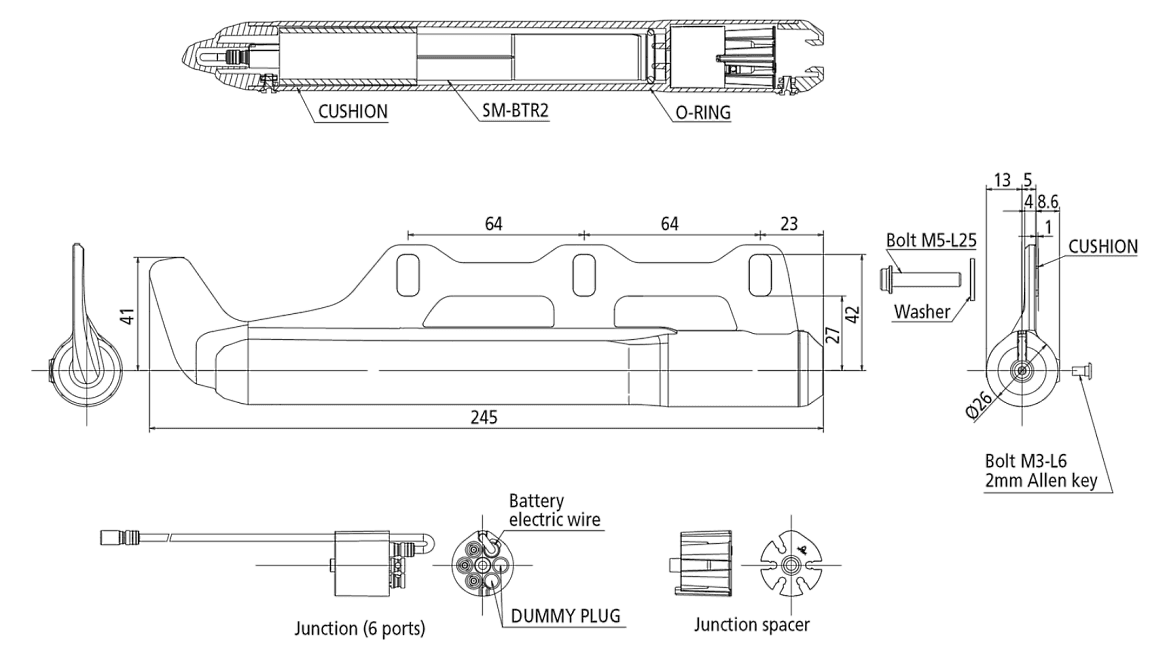

This mount features 6 E-Tube ports (SD50) with a cable organizer - it functions as a Junction B. One of these ports is used to connect the battery.
