Index Rear Derailleurs and set Front Derailleur limits using E-Tube Project
Learn how to set up your di2 front derailleur electrical limits and index or micro-adjust your di2 rear derailleur using E-Tube Project 4.

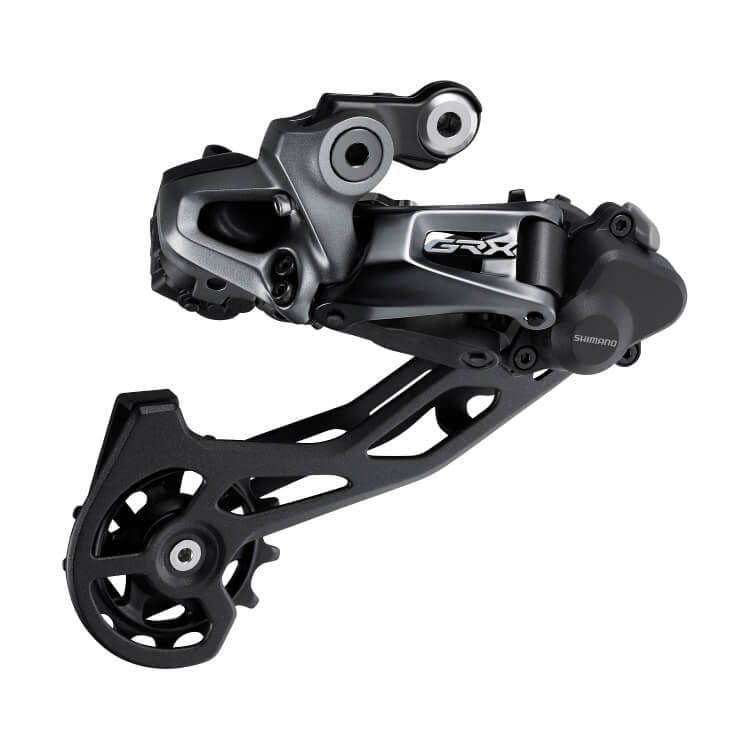

Rear Derailleur (2x)
GRX RD-RX815
If you've been looking at GRX Di2 components you may have seen that there are two rear deraileurs. This RD-RX815 and the RD-RX817.
While the RD-RX817 supports a greater cassette range of 11-42T, that specific derailleur is not meant to be used with a front derailleur. It is the 1x-only GRX rear derailleur.
Affiliate Links
Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.
So if you want to use GRX Di2 and run a front derailleur, this RD-RX815 is the way to go. It has a total capacity of 38T, with a top sprocket max of 11T and a low sprocket max of 34T (min 30T).
Both GRX rear derailleurs feature a clutch mechanism, just like the Ultegra RD-RX805 and the mountain bike rear derailleurs. Shimano call this the chain stabiliser. It can be adjusted and prevents chain slapping (or worse, dropping your chain).
Specifications
- Model code
- RD-RX815
- Series
- GRX RX815
- Weight
- 287g
- SD50 ports
- 1
- Max front difference
- 17T
- Total capacity
- 38T
- Low sprocket max
- 34T
- Low sprocket min
- 30T
- Top sprocket min
- 11T
- Top sprocket max
- 11T
- Pulley teeth
- 13
- RD Type
- Shadow RD+
- Clutch
- Yes
Related components
View all components
Micro-adjust your 10-speed and 11-speed road bike Di2 rear derailleur
Micro-adjust your 10-speed and 11-speed road bike Di2 rear derailleur.

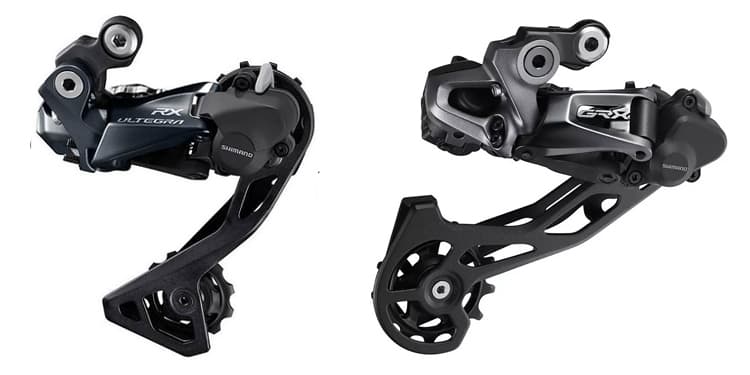

Installation Guide: RD-RX805 / RD-RX815 / RD-RX817 Di2 Rear Derailleur
