Front Derailleur

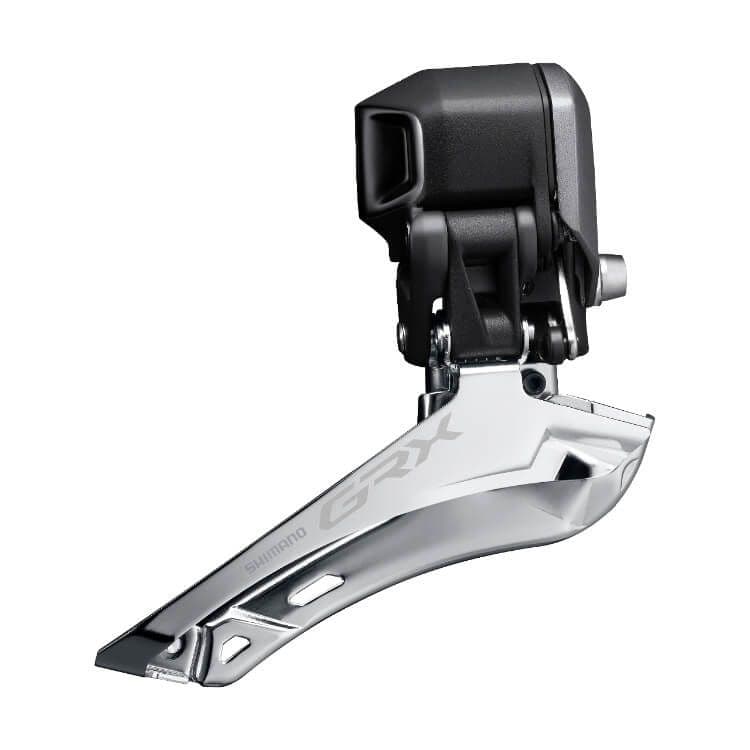

GRX FD-RX815
The Shimano GRX RX815 Di2 gravel front derailleur was developed to handle the different GRX chain line (+2.5mm outwards) perfectly. It is meant to be used with the GRX RD-RX815, but will work with road rear derailleurs too.
Its total capacity is 17T and supports 46-50T top gear teeth.
Affiliate Links
Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.
Specifications
- Model code
- FD-RX815
- Series
- GRX RX815
- Weight
- 135g
- SD50 ports
- 1
- Chain line
- 47mm
- Total capacity
- 17T
- Top gear teeth
- 46T - 48T
