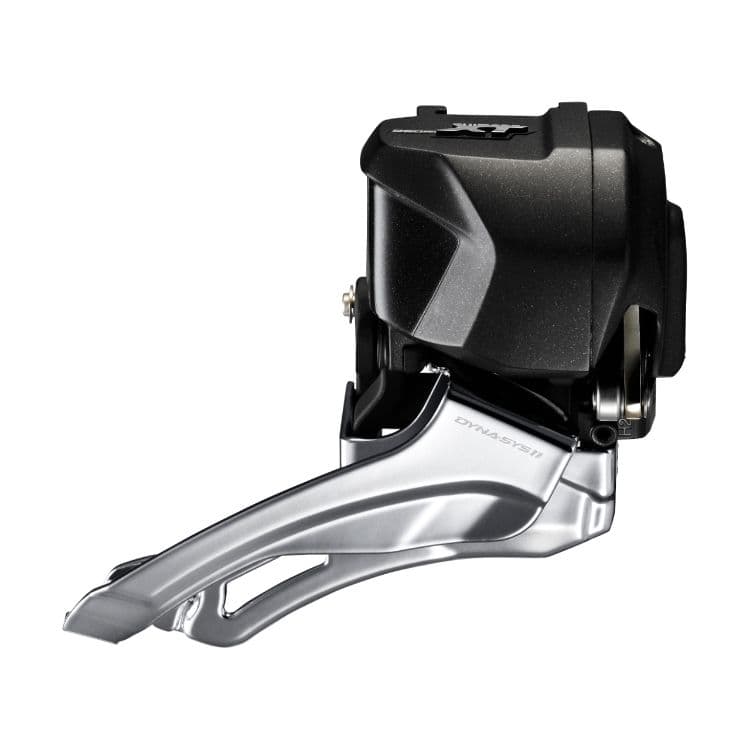

Front Derailleur (2x)
XT FD-M8070
The XT Di2 M8070 Down Swing Front Derailleur is fully compatible with Synchronized Shift mode and offers accurate, stable front 2x11 shifting. It delivers increased power over mechanical versions and rider-programmable shift mapping.
Synchronized shift - display required
One of the Di2 displays is required in order to use synchronized shift. Your derailleur will work fine without a display, but synchro-shift will not function.

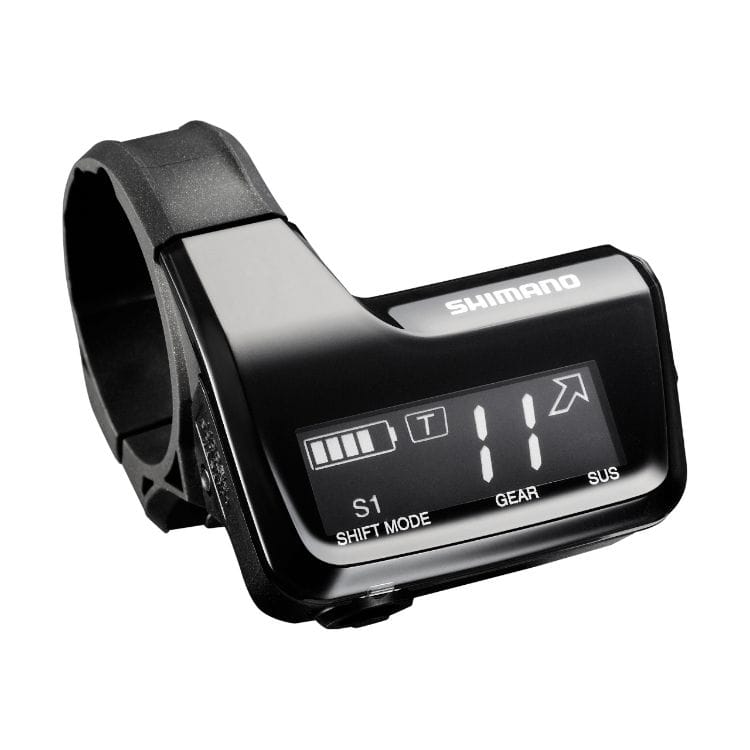

The SC-MT800 display and its XTR equivalent, the SC-M9051 are your best options here.
Affiliate Links
Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.
Specifications
- Model code
- FD-M8070
- Series
- XT M8050
- Weight
- 134g
- SD50 ports
- 1
- Chain line
- 48.8mm
- Total capacity
- 10T
- Top gear teeth
- 34T - 38T
Related components
View all components
Understanding Di2 derailleur specifications
What is a rear derailleur's total capacity, really? Why is there a top sprocket minimum? And what about front derailleurs? Chain line, total capacity, Top gear teeth? This page explains all of those, and more.

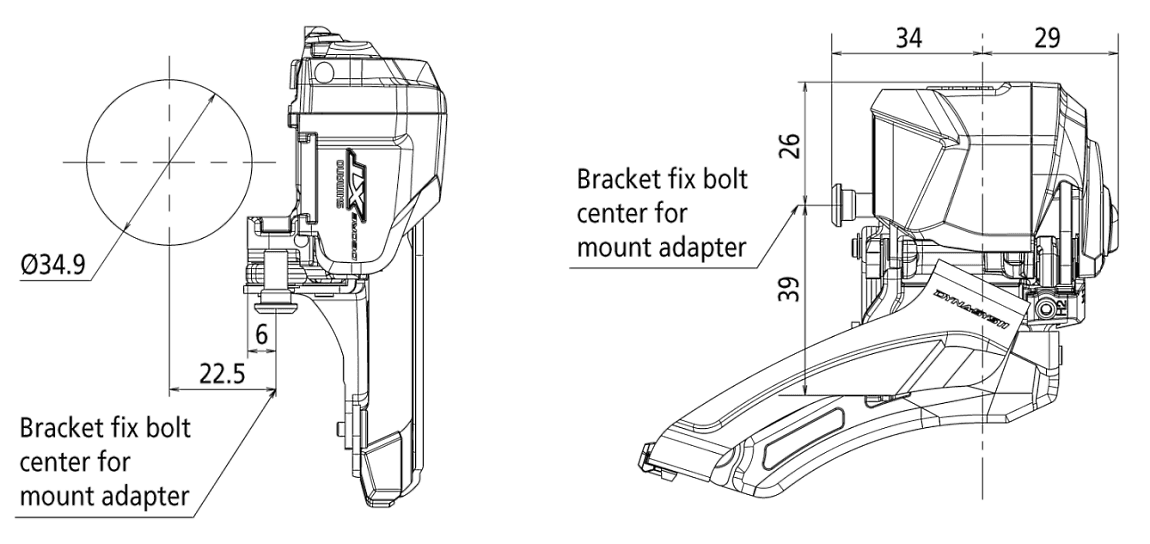

Images
