Crankset (1x, 2x)

XT FC-M5100

Contrary to the XTR MTB groupset, there is no triple XT Front Derailleur. Selecting an XT Crankset is therefore a bit easier.

You either use a Front Derailleur and the FC-M5100-2 crankset, or you don't use a Front Derailleur. In that case you would use the FC-M5100-1 single crankset.

Affiliate Links

Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.

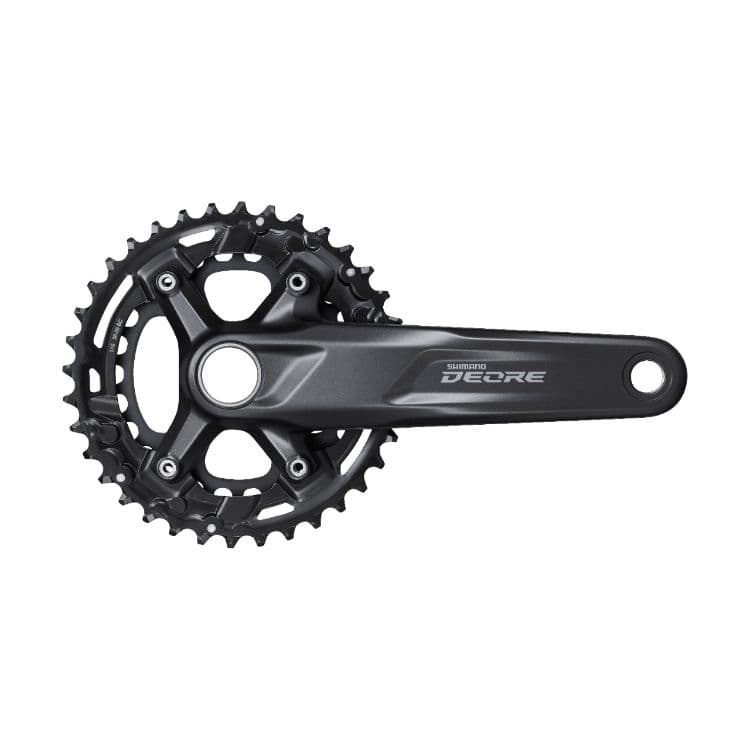

FC-M5100-2

This crankset has a Q-factor of 178.5mm and a chain line of 48.8mm. It comes with a 36-26T chainrings. It'll work with 135 mm and 142 mm O.L.D. frames.

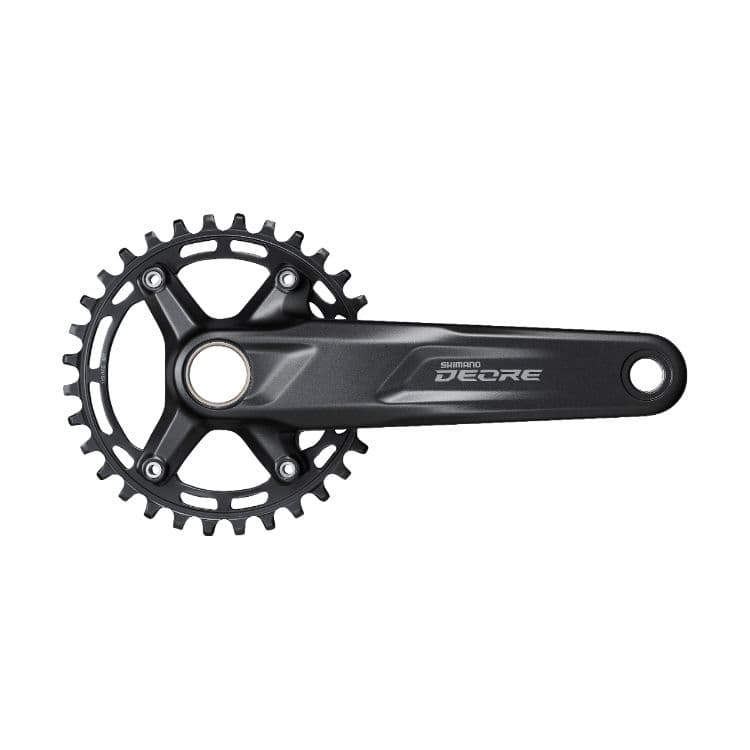

FC-M5100-1

The single crankset has the same Q-factor of 178.5mm, but a slightly different chain line: 52mm. It is meant to be used with 135 mm, 142 mm and 148 mm O.L.D. frames.

Specifications

Model code: FC-M5100
Series: XT M8050
Weight: 850g
Chain line: 48.8mm (2x), 52mm (1x)

View all components

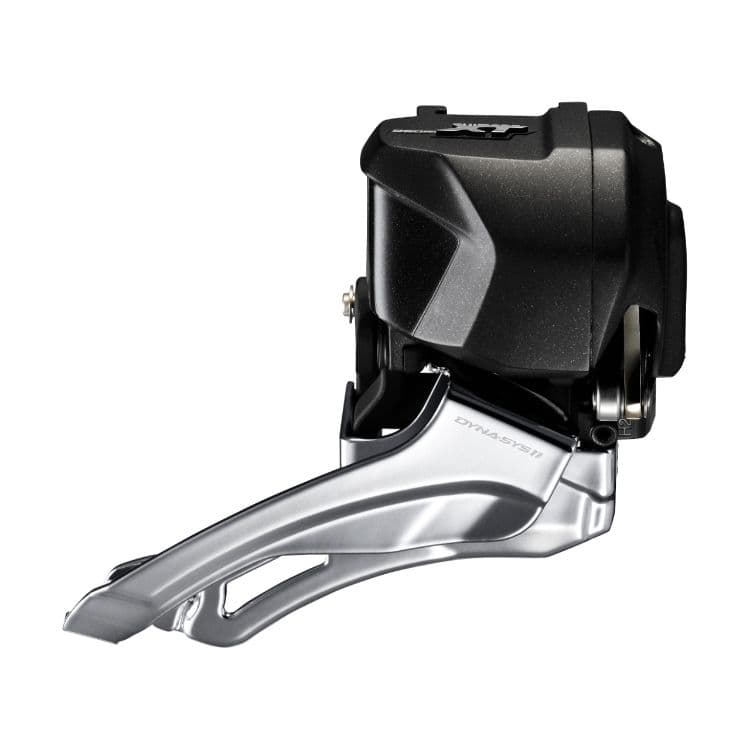

FD-M8070

Front Derailleur (2x)

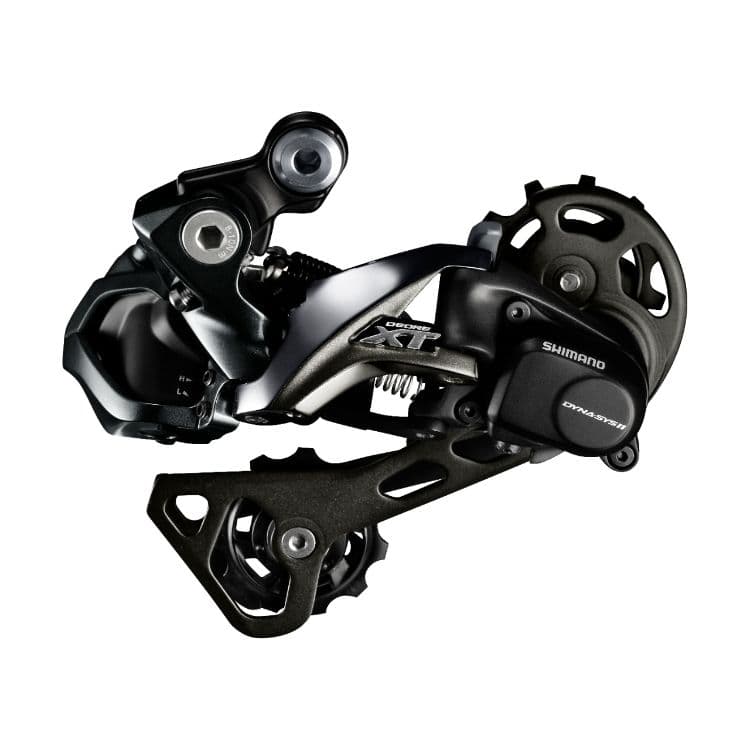

RD-M8050-GS

Shadow RD+ Medium Cage Rear Derailleur

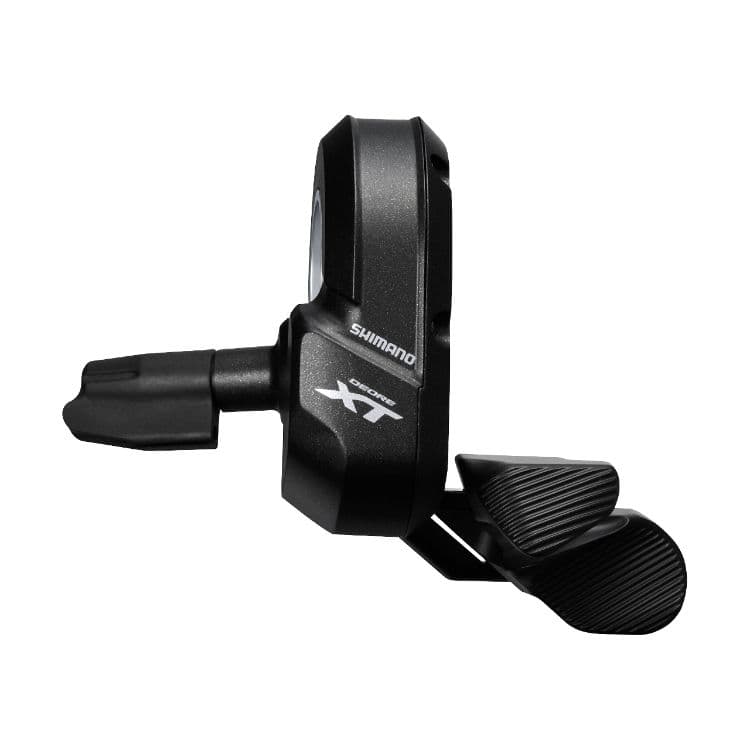

SW-M8050

Firebolt Shifter

EW-SD50

Electric Wire / E-Tube cable

BT-DN110

Internal Battery

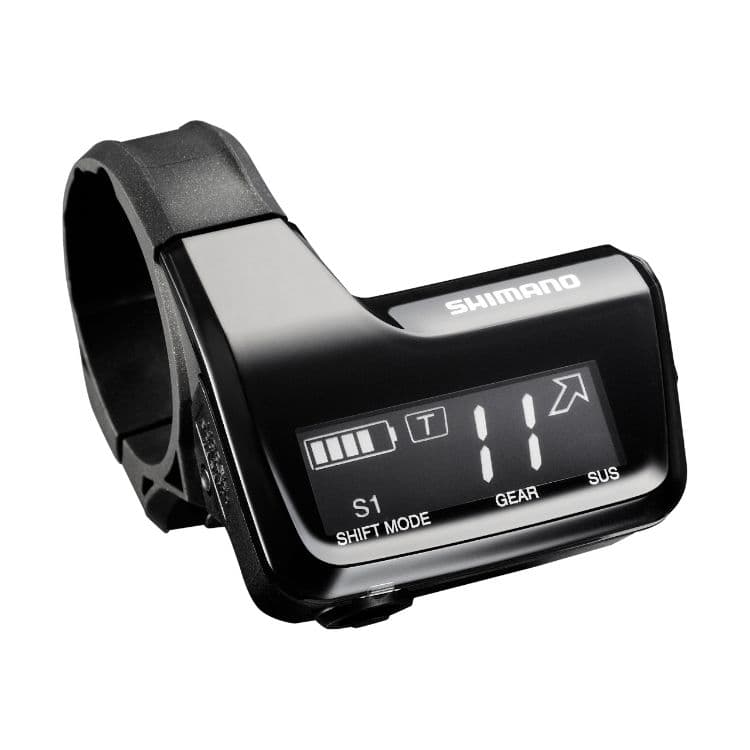

SC-MT800
