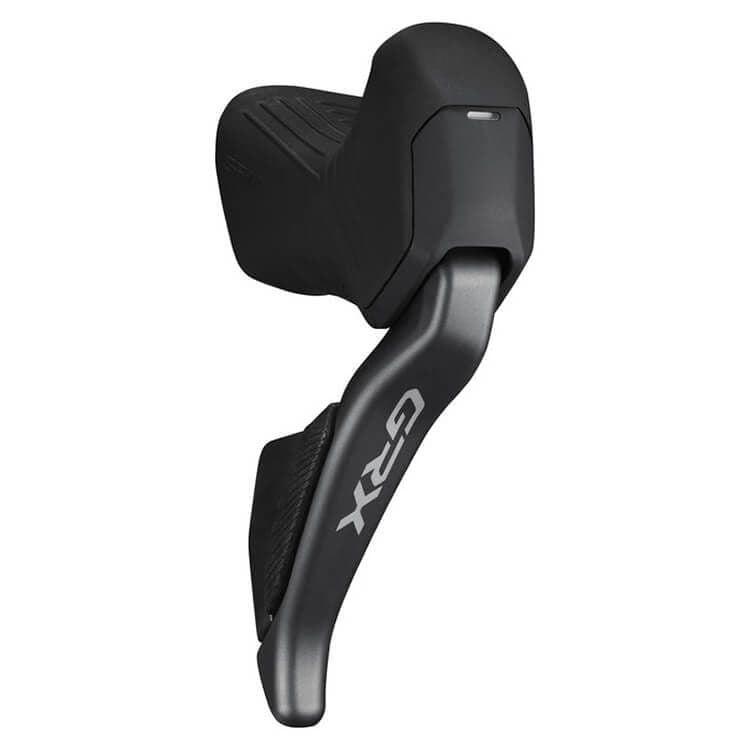

Disc Brake Dual Control Lever (Wireless)

GRX ST-RX825

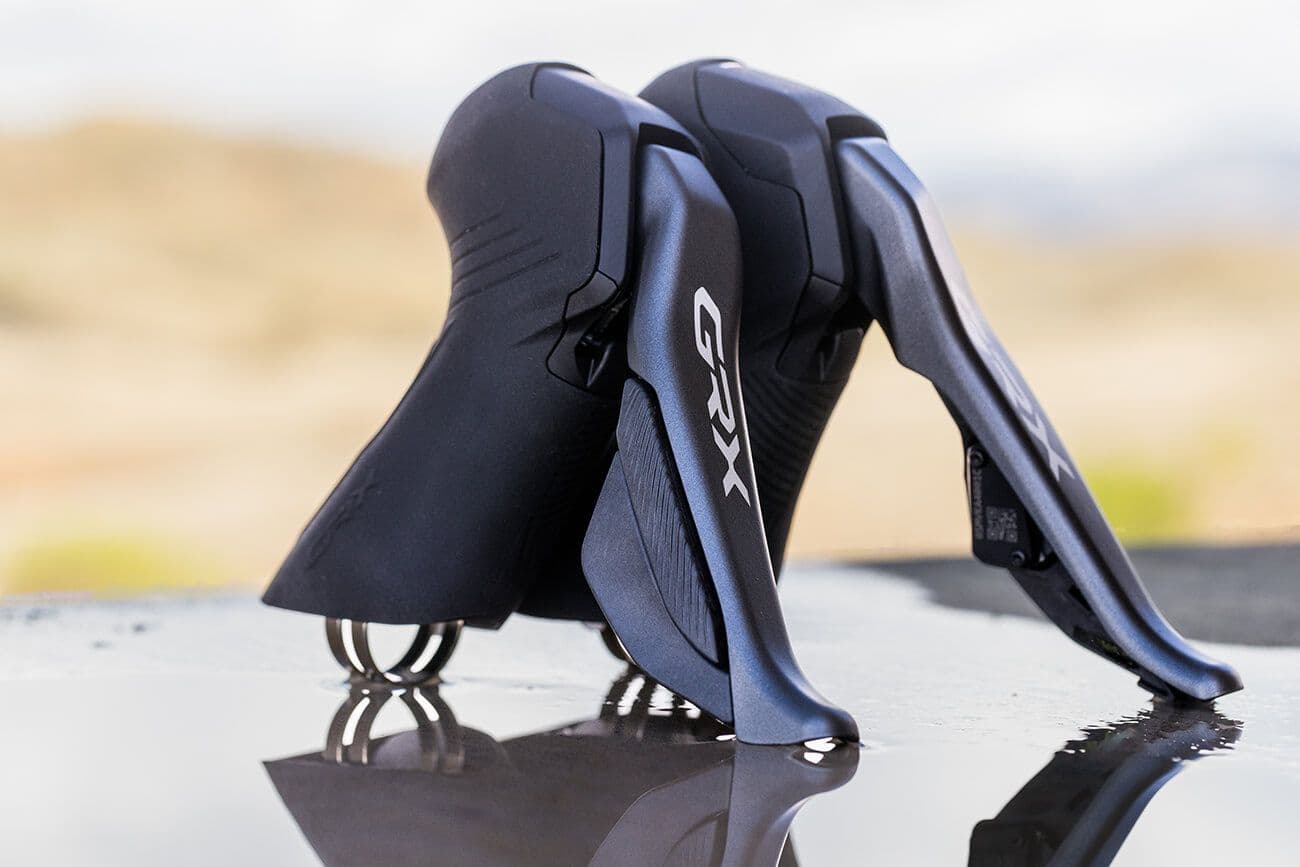

Twelve-speed GRX Shift levers feature one SD300 port, one satellite shifter port, and three shift buttons.

The third button isn't on top of the shifter but on the inside, where you would rest your thumbs.

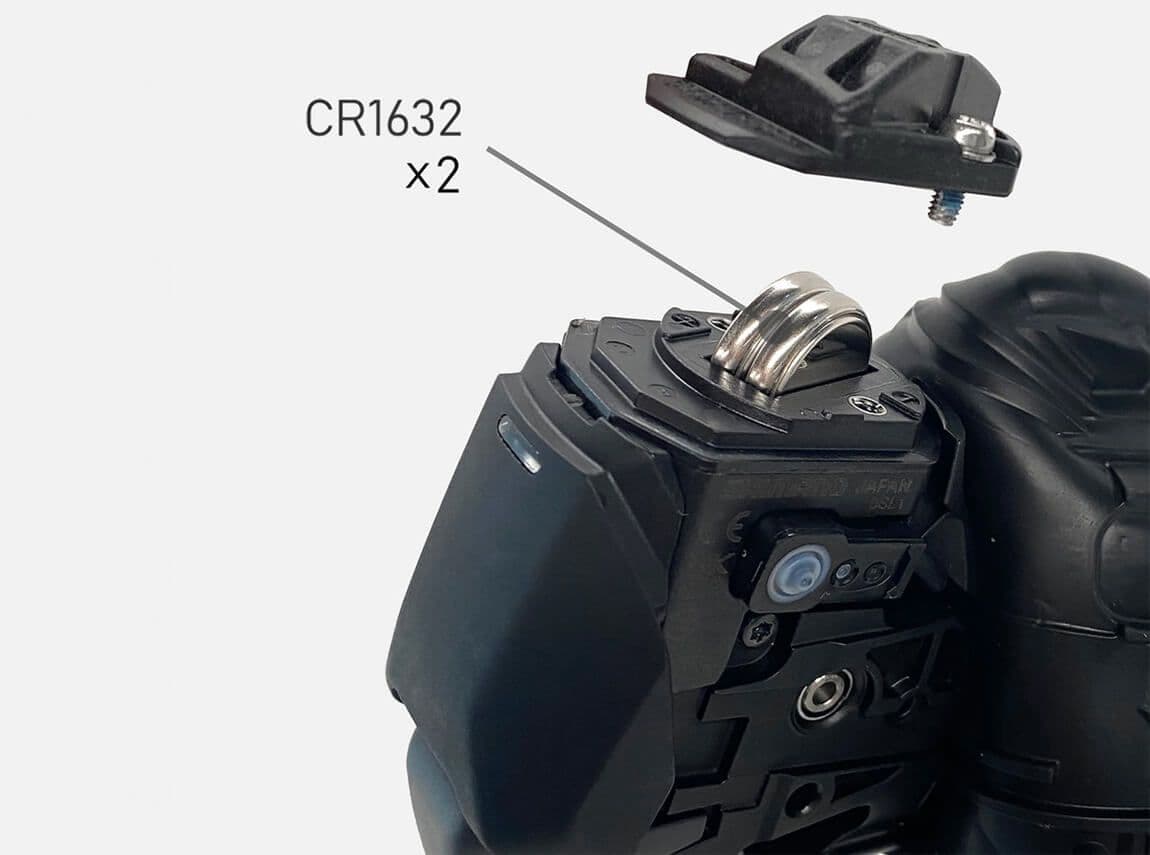

Like the 105 Di2 shifters, these GRX units take two CR1632 batteries. They should last for about 3.5 - 4 years.

Affiliate Links

Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.

Wired compatibility

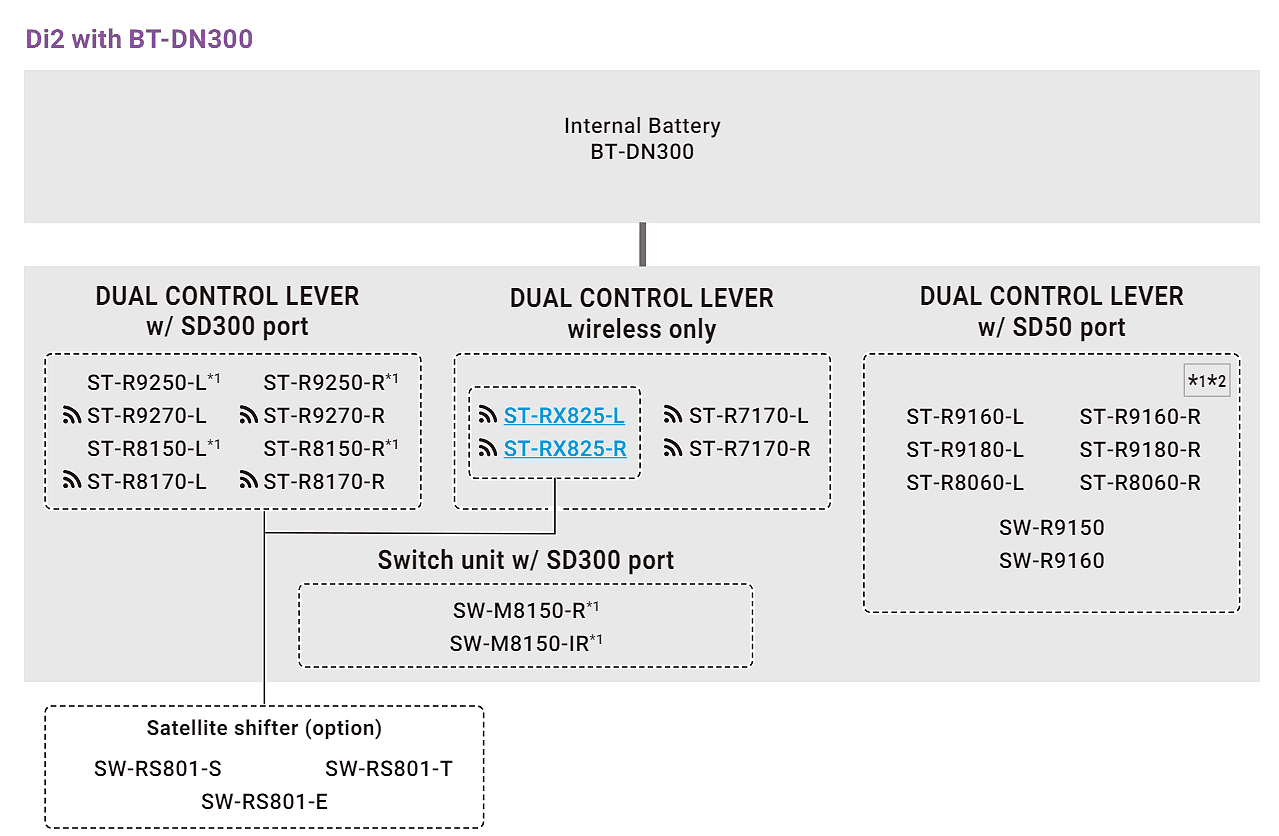

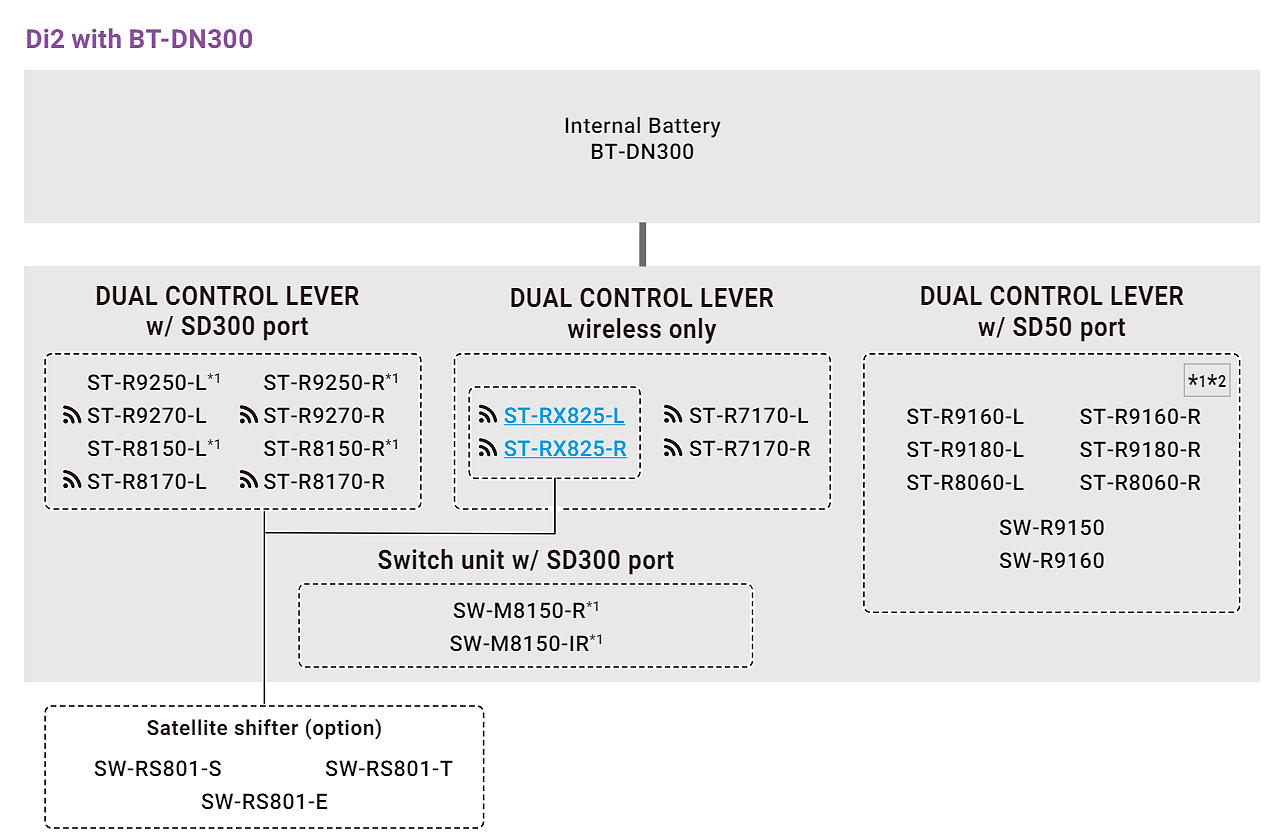

If you've looked at the compatibility information for 12-speed Di2 then you might've noticed that ST-RX825 has no official wired compatibility.

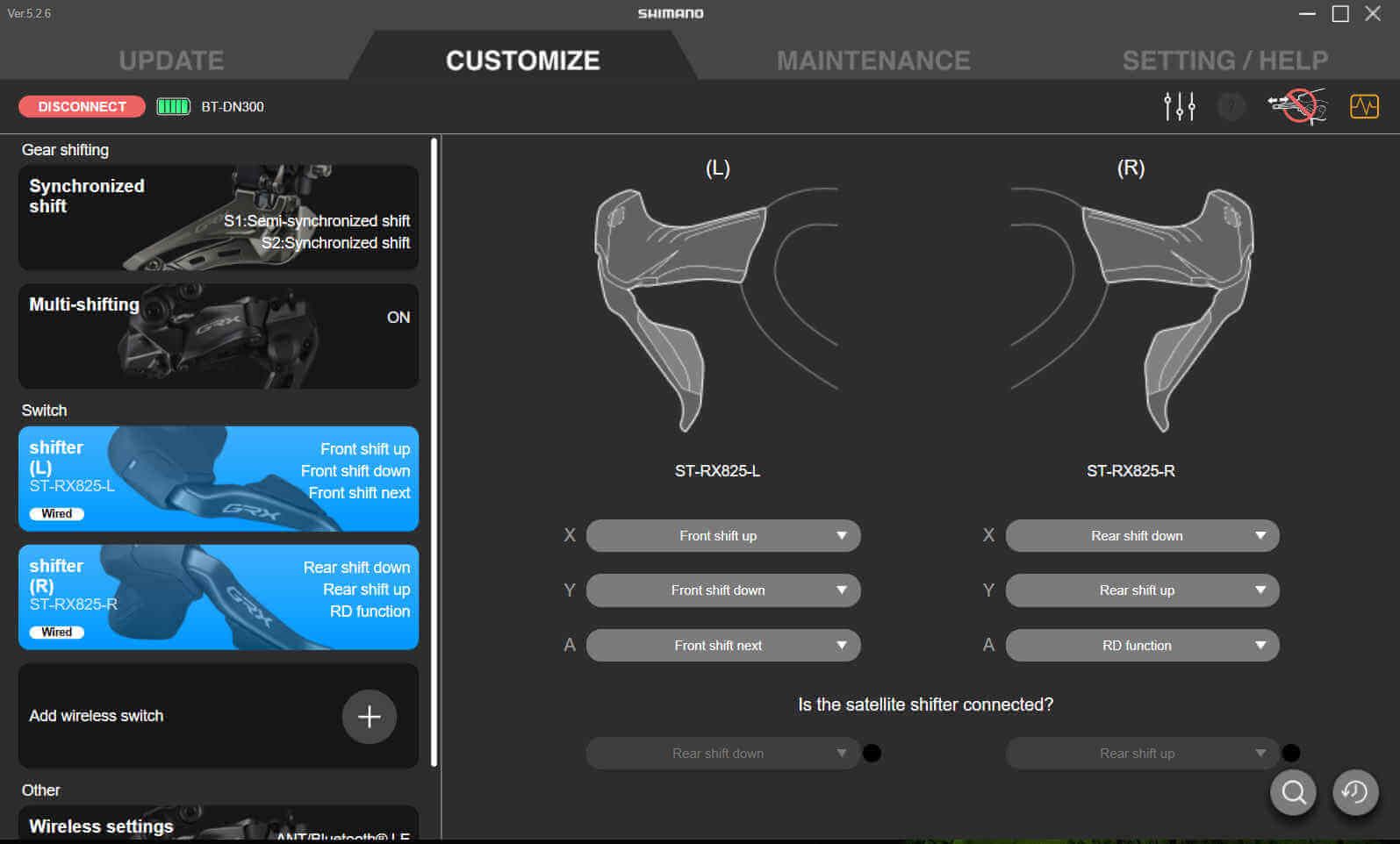

Regardless of what the compatibility information says, you can in fact wire up these shifters no problem. They'll show up in E-Tube Project as you'd expect, and shift wired just fine.

Specifications

Model code: ST-RX825
Series: GRX RX825
Weight: 207g (per shifter)
SD300 ports: 1
SD300 satellite shifter ports: 1
Battery: CR1632 (2 per shifter)
Wired shifting: Maybe? (see description)
Wireless shifting: Yes
Servo wave: Yes
Free stroke adjust: Yes
Reach adjust: Yes
Brake type: Disc

View all components

FD-RX825

Front Derailleur

FC-RX820-2

2x12 Gravel Crankset

RD-RX825

Rear Derailleur

BT-DN300

Internal Battery

EW-SD300

Electric Wire / E-Tube cable

SW-RS801-S

Satellite Drops Sprint Shifter (12-speed)

SW-RS801-E

Clip-on Aero Bar Satellite Shifter (12 speed)

SW-RS801-T

Satellite Tops Shifter (12 speed)

TL-EW300

Cable plug tool for Di2

EW-EC300

Internal Battery Charging Cable

View all components

December 9, 2025Installation Guide

Check Di2 shifter battery levels and replace them

12-speed wireless shifter batteries last about two years. This page shows you how to check the battery level on your shifters, and replace the batteries.

October 23, 2025Installation Guide

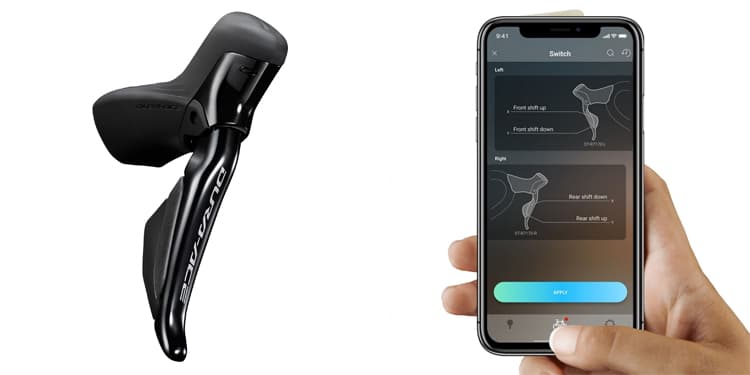

Update the firmware on 12-speed Hydraulic Shift levers

Updating 12-speed Di2 R9270/R8170/R7170 shift levers is not as straightforward as you might think. You need either the SM-PCE02, or connect the levers to the rest of the system using an EW-SD300 wire.

June 28, 2025Installation Guide

Pair 12-speed Wireless Di2 Shifters

Pairing 12-speed Di2 wireless shift levers can be done using the mobile app, wires, or using the SM-PCE02. This page describes how to pair via mobile phone, and E-Tube EW-SD300 wires.

June 20, 2025Installation Guide

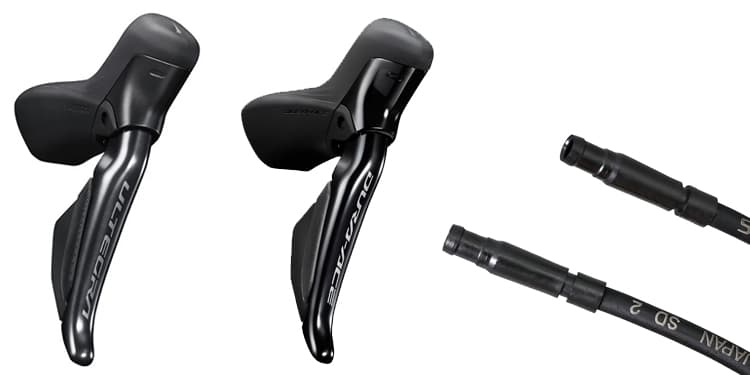

Connect 12-speed Di2 shifters by wire
