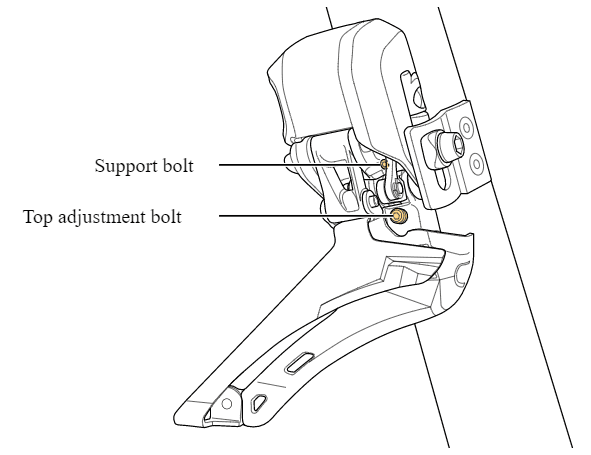

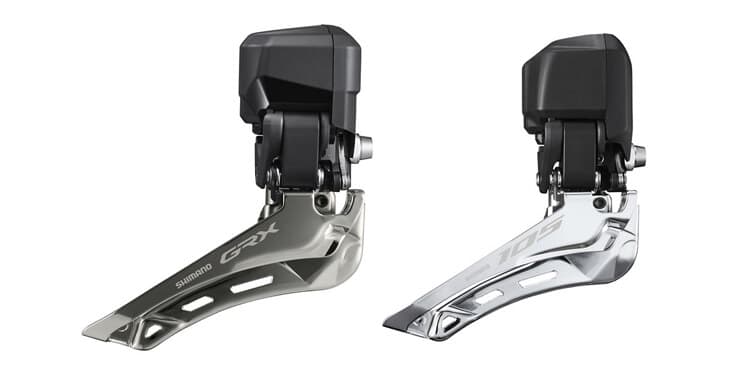

Set up 12-speed 105 Di2 and GRX Di2 Front Derailleur limits
Read how to set up your GRX/105 12-speed Di2 Front Derailleur - FD-RX825 / FD-R7150. You'll do so using the top(high) limit bolt and electric low limit.
Front Derailleur

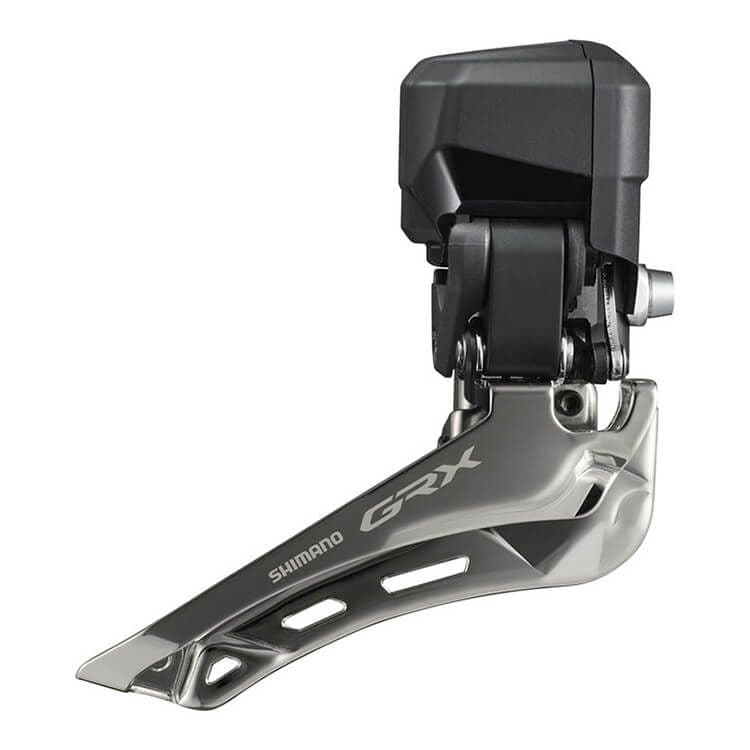

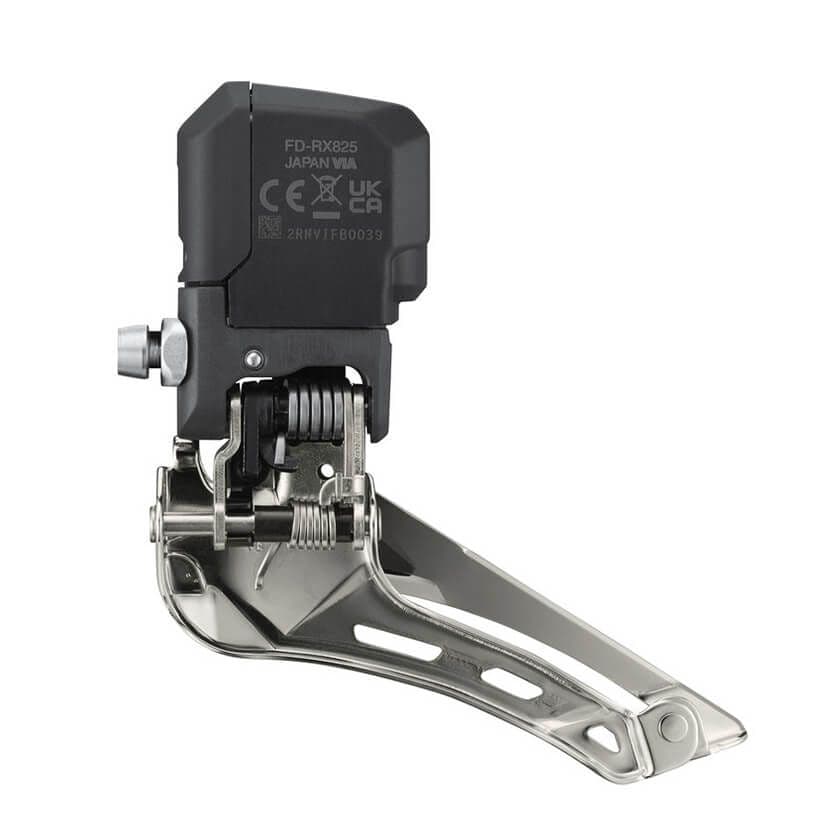

GRX FD-RX825
Shimano's twelve-speed GRX RX825 Di2 gravel front derailleur was designed to be used with a 47mm chain line (+2.5mm compared to 12-speed road) . It is meant to be paired with the GRX rear derailleur, RD-RX825, but it'll work with other 12-speed road derailleurs and shifters too.
The derailleur's total capacity is 17T and supports 46-48T top gear teeth.
Affiliate Links
Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.
Just like the 12-speed 105 front derailleur, this FD-RX825 has one top limit screw and one electronic limit.
If you want to build a 1x GRX bike, you can omit the front derailleur. You don't have to install it in order for the bike to work.
Specifications
- Model code
- FD-RX825
- Series
- GRX RX825
- Weight
- 142g
- SD300 ports
- 1
- Total capacity
- 17T
- Chain line
- 47mm
- Top gear teeth
- 46-48T
Related components
View all components

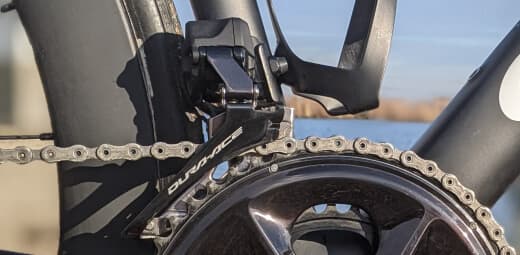

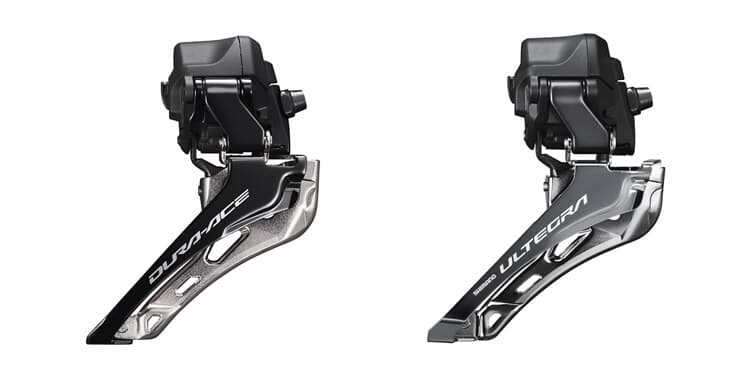

12-speed Front Derailleur installation and adjustment guide
