Front Derailleur

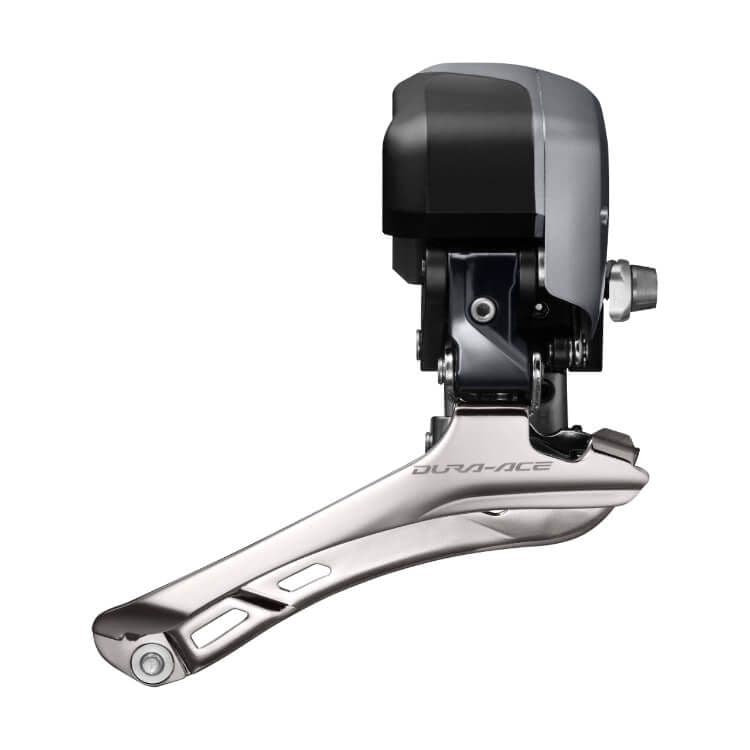

Dura-Ace FD-9070
Shimano's FD-9070 front derailleur is attached to the frame using braze-on - it has a total capacity of 16T, a top gear teeth of 50-55T and it weighs 114g.
Affiliate Links
Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.
Specifications
- Model code
- FD-9070
- Series
- Dura-Ace 9070
- Weight
- 114g
- SD50 ports
- 1
- Chain line
- 43.5mm
- Total capacity
- 16T
- Top gear teeth
- 50T - 56T
Related components
View all components

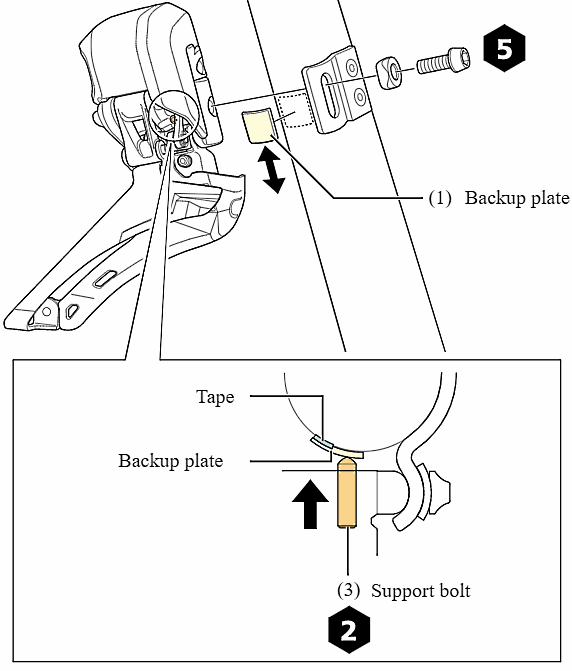

Installation Guide: Ultegra FD-6870 / DURA-ACE FD-9070 Di2 Front Derailleur
Bought a new Di2 derailleur or have to replace your old one? Read FD-6870 / FD-9070 Di2 Front Derailleur installation instructions here.

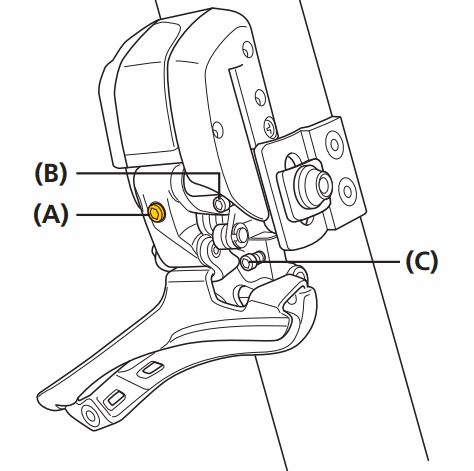

Set up Front derailleur limits (two bolt derailleurs: 6770, 6780, 9070)
