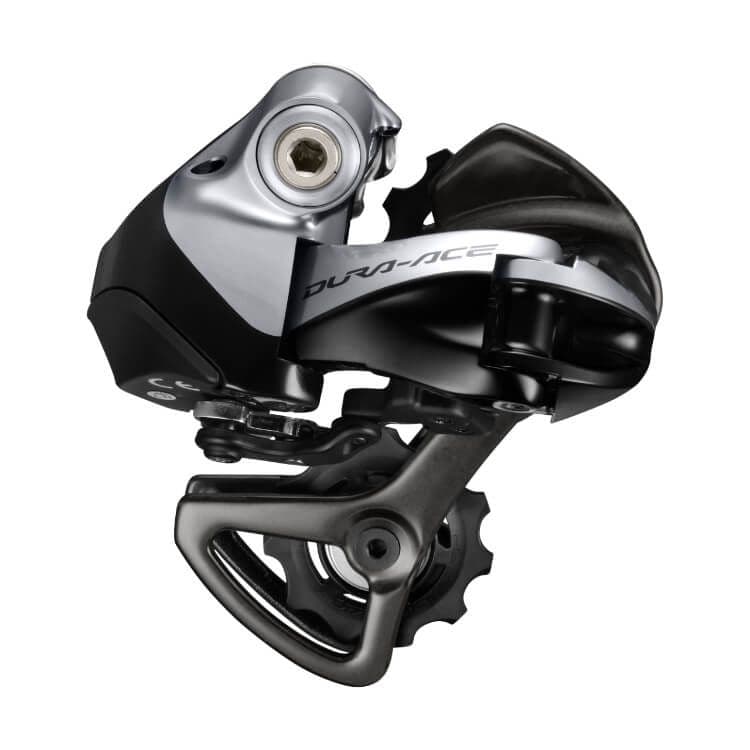

Short Cage Rear Derailleur
Dura-Ace RD-9070-SS
Shimano's DURA-ACE RD-9070 rear derailleur is available in the short cage version only. Its top sprocket max is 14T, the min top sprocket size is 11T.
The low sprocket max is 28T and the min is 23T. It has a max front difference of 16T.
Affiliate Links
Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.
When paired with 9070 / 6870 or newer components and the BT-DN110 battery, this derailleur supports synchronized shift.
Specifications
- Model code
- RD-9070-SS
- Series
- Dura-Ace 9070
- Weight
- 217g
- SD50 ports
- 1
- Clutch
- No
- RD Type
- Non-shadow RD
- Max front difference
- 16T
- Total capacity
- 33T
- Low sprocket max
- 28T
- Low sprocket min
- 23T
- Top sprocket min
- 11T
- Top sprocket max
- 14T
- Pulley teeth
- 11
- Mount
- Conventional mount
